MT6825 - NOVOSENSE

Description: 18-bit AMR magnetic angle encoder (0–360°) with <2 µs latency, SPI interface, ABZ (1–4096 PPR), UVW (1–16 pole-pairs), 12-bit PWM, supports speeds <25,000 RPM, operates at 3.0–5.0 V, –40 °C to +125 °C, in TSSOP-16, ideal for motor position and rotation control.

Download MT6825 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MT6825 model

Email notifications will be applied after download.

Send part feedback

Symbol

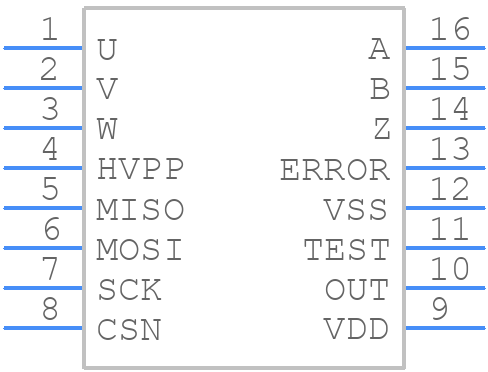

MT6825 - NOVOSENSE - PCB symbol

PCB Footprints

MT6825 - NOVOSENSE PCB footprint - Small Outline Packages - Small Outline Packages - MT6825(TSSOP-16) .

3D Models

MT6825 - NOVOSENSE - 3D model - Small Outline Packages - MT6825(TSSOP-16) .

Datasheet Download Datasheet
Stock & Prices Price & Stock for MT6825
Part Number MT6825
Manufacturer NOVOSENSE
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MT6825(TSSOP-16) .
Released Date Jul 1, 2025
Last Modified Date Jul 1, 2025 7:36 AM UTC
