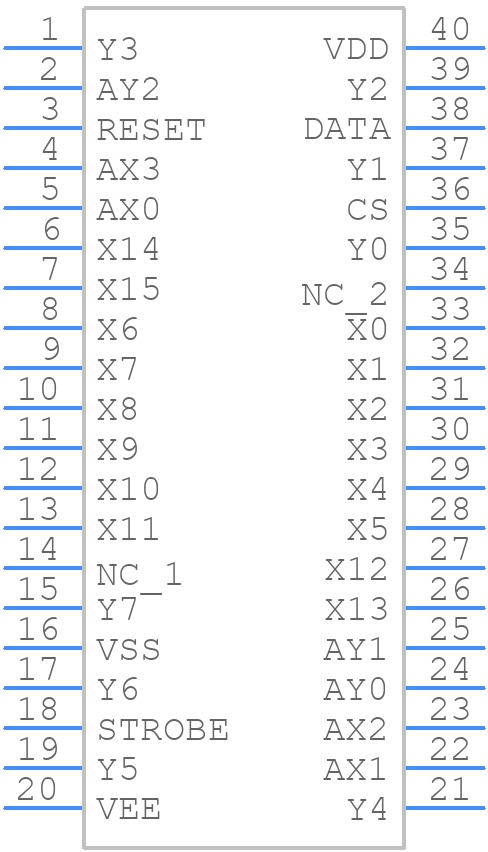

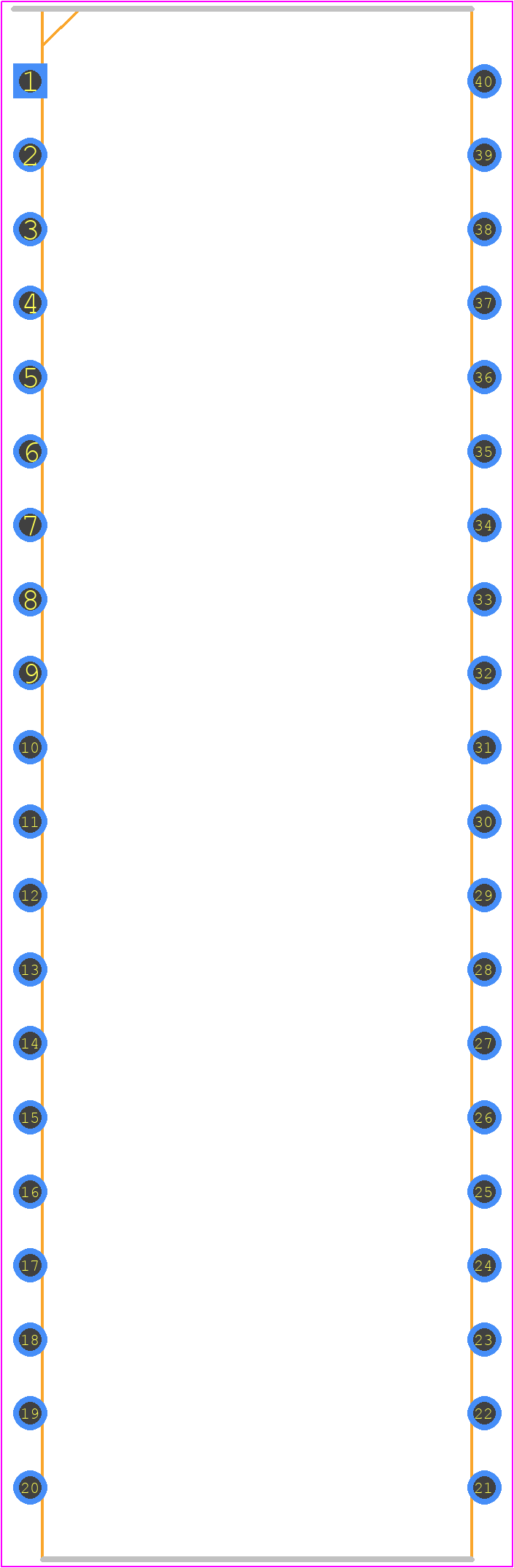

MT8816AE1 - Microsemi Corporation

MT8816AE1 Details

• Manufacturer Part Number:

  MT8816AE1

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  DIP

• Package Description:

  LEAD FREE, PLASTIC, MS-011AC, DIP-40

• Pin Count:

  40

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Microsemi Corporation (now Microchip)

• Additional Feature:

  8 X 16 ARRAY

• Analog IC - Other Type:

  CROSS POINT SWITCH

• JESD-30 Code:

  R-PDIP-T40

• JESD-609 Code:

  e3

• Length:

  51.75 mm

• Neg Supply Voltage-Nom (Vsup):

  -7 V

• Number of Channels:

  16

• Number of Functions:

  1

• Number of Terminals:

  40

• Off-state Isolation-Nom:

  95 dB

• On-state Resistance Match-Nom:

  5 Ω

• On-state Resistance-Max (Ron):

  185 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP40,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  6.35 mm

• Supply Voltage-Max (Vsup):

  13.2 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  100 ns

• Switch-on Time-Max:

  100 ns

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
