MT8870DE - Zarlink Semiconductor

Description: Zarlink Semiconductor MT8870DE, DTMF Signalling Receiever, 3.58MHz 3mA, 4.75 → 5.25 V, 18-Pin PDIP

Download MT8870DE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

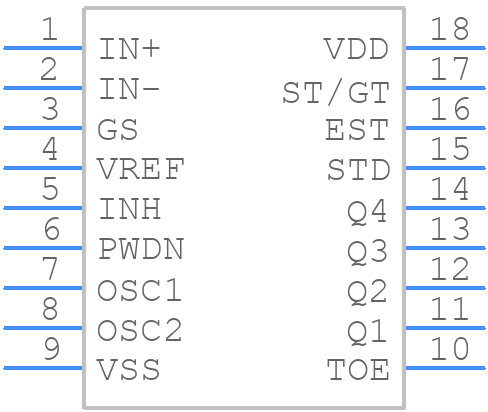

MT8870DE - Zarlink Semiconductor - PCB symbol
click to zoom
PCB Footprints

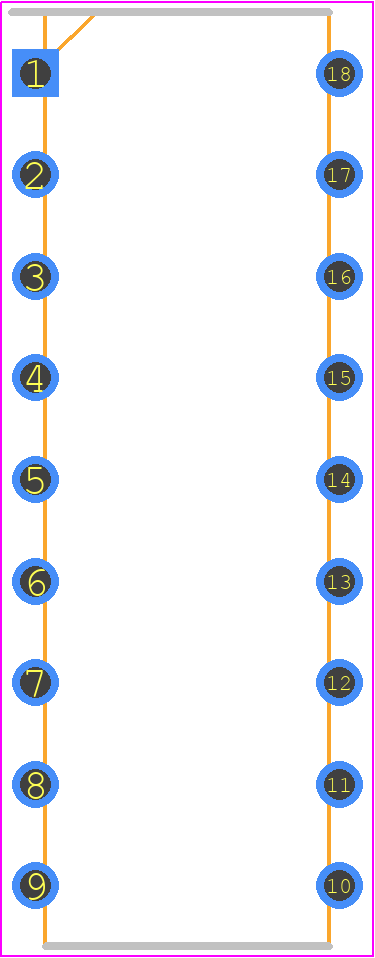

MT8870DE - Zarlink Semiconductor PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 18-PIN PDIP
click to zoom
3D Models
MT8870DE - Zarlink Semiconductor - 3D model - Dual-In-Line Packages - 18-PIN PDIP
click to zoom

MT8870DE Details

  • Manufacturer Part Number:

    MT8870DE

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, MS-001AC, DIP-18

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Zarlink Semiconductor Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e0

  • Length:

    22.86 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Telecom IC Type:

    DTMF SIGNALING CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MT8870DE Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog voltage (AVDD). This ensures proper device operation and prevents latch-up.
  • Optimization involves selecting the correct clock frequency, adjusting the gain and filter settings, and ensuring proper PCB layout and decoupling. Consult the datasheet and application notes for specific guidance.
  • The maximum clock frequency is 512 kHz, but it's recommended to operate at 256 kHz or lower for optimal performance and to minimize power consumption.
  • The MT8870DE outputs 14-bit signed binary data. Ensure your microcontroller or processor can handle this format, and consider using a signed 16-bit integer to store the output values.
  • The internal voltage regulator generates a stable 2.5V supply for the analog circuitry, ensuring optimal performance and reducing the need for external voltage regulation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MT8870DE Overview

Use the download button to access the MT8870DE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MT887, or try a keyword search, such as Telecom Signaling Circuits
