MT8870DS1 - Microsemi Corporation

Description: Telecom Interface ICs Pb Free DTMF RECEIVER SOIC

Download MT8870DS1 Model

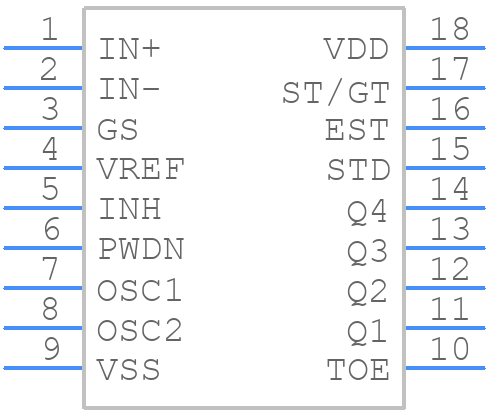

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MT8870DS1 - Microsemi Corporation PCB footprint - Small Outline Packages - Small Outline Packages - 18 LEAD SOIC 0.300"
click to zoom
3D Models
MT8870DS1 - Microsemi Corporation  - 3D model - Small Outline Packages - 18 LEAD SOIC 0.300"
click to zoom

MT8870DS1 Details

  • Manufacturer Part Number:

    MT8870DS1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP18,.4

  • Pin Count:

    18

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • JESD-30 Code:

    R-PDSO-G18

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    DTMF SIGNALING CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

MT8870DS1 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VEE, and then the input clock signal. This ensures proper device operation and prevents latch-up.
  • To ensure the MT8870DS1 is in a known state after power-up, assert the Reset (RST) pin low for at least 10 ns. This initializes the device and sets the output to a known state.
  • The MT8870DS1 can handle clock frequencies up to 1.5 GHz. However, the maximum clock frequency may vary depending on the specific application and operating conditions.
  • To optimize the MT8870DS1 for low power consumption, use the Power-Down (PD) pin to disable the device when not in use. Additionally, minimize the input clock frequency and use a low-power clock source.
  • The recommended termination scheme for the MT8870DS1 output is a 50-ohm resistive termination to VCC. This ensures proper signal integrity and minimizes reflections.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MT8870DS1 Overview

Use the download button to access the MT8870DS1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MT887, or try a keyword search, such as Telecom Signaling Circuits
