MT8870DSR1 - Microchip

Description: Telecom Interface ICs Pb Free Integrated DTMF Receiver

Download MT8870DSR1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

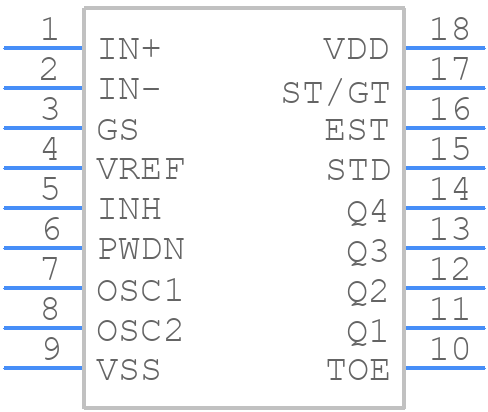

MT8870DSR1 - Microchip - PCB symbol
click to zoom
PCB Footprints
MT8870DSR1 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 18-l soic
click to zoom
3D Models
MT8870DSR1 - Microchip - 3D model - Small Outline Packages - 18-l soic
click to zoom
  • Datasheet
  • Stock & Prices $ Price & Stock for MT8870DSR1
  • Part Number MT8870DSR1
  • Manufacturer Microchip
  • Pin Count 18
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - 18-l soic
  • Released Date Jul 24, 2020
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

MT8870DSR1 Details

  • Manufacturer Part Number:

    MT8870DSR1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.300 INCH, LEAD FREE, MS-013AB, SOIC-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    SOIC-18

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.55 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    DTMF SIGNALING CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

MT8870DSR1 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD before applying VREF. This ensures that the internal voltage regulator is powered up correctly.
  • To ensure accurate DTMF tone detection, make sure to use a high-quality audio signal, filter out noise and echoes, and adjust the detection threshold and timing parameters according to the application requirements.
  • Yes, the MT8870DSR1 can be used with a microcontroller that has a 3.3V supply. The device is compatible with 3.3V and 5V logic levels, and the output voltage can be adjusted to match the microcontroller's supply voltage.
  • The MT8870DSR1 can be interfaced with a microcontroller using a serial interface (QSPI or SPI). The device provides a 3-wire serial interface (CLK, DIN, and DOUT) that can be connected to the microcontroller's serial interface pins.
  • The maximum frequency of the clock input (CLK) for the MT8870DSR1 is 2.5 MHz. Exceeding this frequency may cause the device to malfunction.
