The recommended PCB layout and thermal management for MT8880CP1 can be found in the Microsemi application note AN-114, which provides guidelines for PCB design, thermal management, and layout considerations to ensure optimal performance and reliability.
The MT8880CP1 can be configured for different clock frequencies and output formats using the device's control pins and registers. The specific configuration depends on the application requirements and can be found in the device's programming guide and application notes.
The maximum operating temperature range for the MT8880CP1 is -40°C to +85°C, as specified in the datasheet. However, it's recommended to operate the device within a narrower temperature range to ensure optimal performance and reliability.
Troubleshooting common issues with the MT8880CP1 requires a systematic approach, including checking the device's configuration, signal integrity, and power supply. Microsemi provides application notes and technical support resources to help engineers troubleshoot and resolve common issues.
Yes, the MT8880CP1 is compatible with lead-free soldering and RoHS compliance. The device is manufactured using lead-free materials and is compliant with the European Union's Restriction of Hazardous Substances (RoHS) directive.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MT8880CP1 Overview

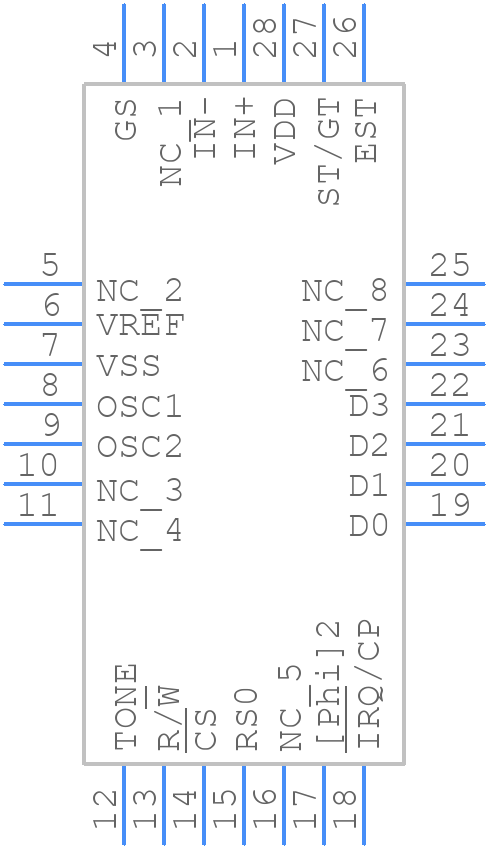

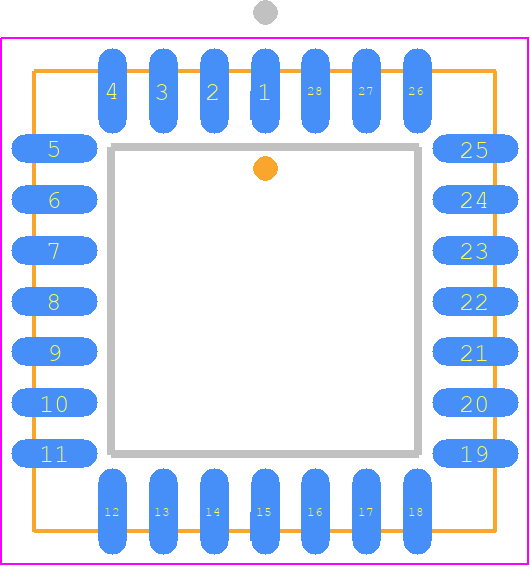

Use the download button to access the MT8880CP1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MT888,
or try a keyword search, such as Telecom Signaling Circuits
