MT8889CS1 - Microsemi Corporation

Description: Telecom Interface ICs Pb Free DTMF TRANSCEIVER

Download MT8889CS1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

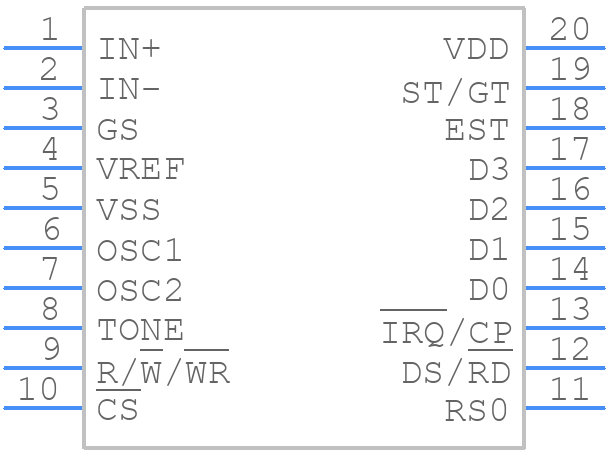

MT8889CS1 - Microsemi Corporation - PCB symbol
click to zoom
PCB Footprints
MT8889CS1 - Microsemi Corporation PCB footprint - Small Outline Packages - Small Outline Packages - MT8888CSR1
click to zoom
3D Models
MT8889CS1 - Microsemi Corporation - 3D model - Small Outline Packages - MT8888CSR1
click to zoom

MT8889CS1 Details

  • Manufacturer Part Number:

    MT8889CS1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, LEAD FREE, MS-013AC, SOIC-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    DTMF SIGNALING CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

MT8889CS1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MT8889CS1 is -40°C to +85°C.
  • To ensure reliable data transmission, ensure that the MT8889CS1 is properly configured, and the transmission lines are properly terminated. Also, ensure that the clock frequency is within the recommended range, and the data transmission rate is within the specified limits.
  • The MT8889CS1 supports clock frequencies up to 100 MHz.
  • The MT8889CS1 provides error detection and correction mechanisms, such as parity and checksum. Implement error handling mechanisms in your design to detect and correct errors. Also, ensure that your design can handle exceptions, such as clock faults and data transmission errors.
  • Yes, the MT8889CS1 is designed to be radiation-hardened and can be used in space and other high-reliability applications.
