MT88E39AS1 - Microsemi Corporation

Description: Telecom Interface ICs Pb Free CNIC 1.1

Download MT88E39AS1 Model

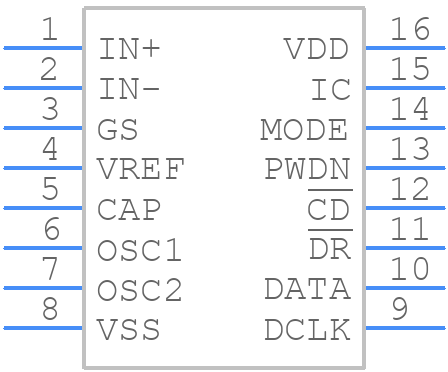

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MT88E39AS1 - Microsemi Corporation PCB footprint - Small Outline Packages - Small Outline Packages - SOIC
click to zoom
3D Models
MT88E39AS1 - Microsemi Corporation  - 3D model - Small Outline Packages - SOIC
click to zoom

MT88E39AS1 Details

  • Manufacturer Part Number:

    MT88E39AS1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, LEAD FREE, MS-013AA, SOIC-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 5V NOMINAL VOLTAGE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELEPHONE CALLING NO IDENTIFICATION CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

MT88E39AS1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the clock signal traces short and away from noisy signals. Use a 50-ohm transmission line for the clock output.
  • Use a low-ESR capacitor (e.g., 0.1uF) between VCC and GND, and a 10uF capacitor between VCC and GND for bulk decoupling. Ensure the power supply is stable and has low ripple.
  • The maximum frequency deviation is ±50 ppm over the operating temperature range. This ensures the device operates within the specified frequency tolerance.
  • Use the device's programming pins (P0-P3) to set the desired frequency. Consult the datasheet for the specific programming sequence and frequency tables.
  • Use a 50-ohm termination resistor in series with a 50-ohm load to ensure proper signal integrity and minimize reflections.
