MT88L70AS1 - Microsemi Corporation

Description: Telecom Interface ICs Pb Free 3 VOLT INTEGRATED DTMF RECEIVER

Download MT88L70AS1 Model

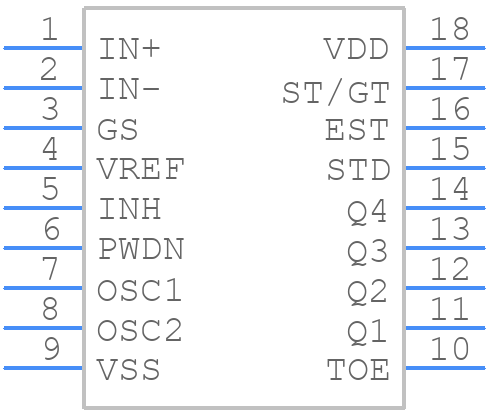

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MT88L70AS1 - Microsemi Corporation PCB footprint - Small Outline Packages - Small Outline Packages - 18 LEAD SOIC 0.300"
click to zoom
3D Models
MT88L70AS1 - Microsemi Corporation  - 3D model - Small Outline Packages - 18 LEAD SOIC 0.300"
click to zoom

MT88L70AS1 Details

  • Manufacturer Part Number:

    MT88L70AS1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, LEAD FREE, MS-013AB, SOIC-18

  • Pin Count:

    18

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.55 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    DTMF SIGNALING CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm
