MTA206NPC - TE Connectivity

Description: DPDT Toggle Switch On-On, 4 A, Panel Mount

Download ECAD Model

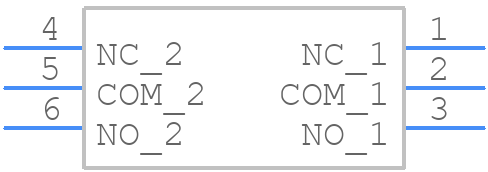

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

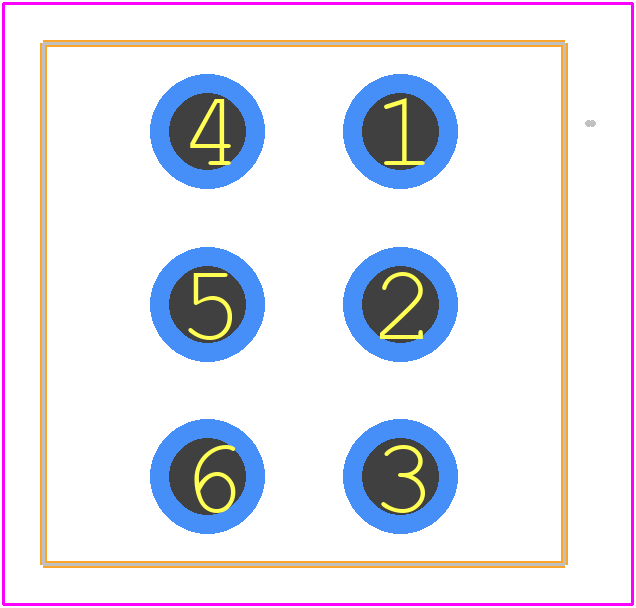

PCB Footprints

MTA206NPC - TE Connectivity PCB footprint - Other - Other - MTA206NPC-4
click to zoom

3D Models

MTA206NPC - TE Connectivity  - 3D model - Other - MTA206NPC-4
click to zoom

MTA206NPC Details

  • Manufacturer Part Number:

    MTA206NPC

  • Brand Name:

    Alcoswitch

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    not_compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    8.24

  • Samacsys Modified On:

    2020-07-02 06:25:24

  • Actuator Angle:

    24 deg

  • Actuator Color:

    BLACK

  • Actuator Length:

    0.413 inch

  • Actuator Material:

    PHENOLIC

  • Actuator Type:

    LONG BAT

  • Additional Feature:

    PANEL MOUNTABLE

  • Body Breadth:

    13 mm

  • Body Height:

    10 mm

  • Body Length or Diameter:

    13 mm

  • Bushing Length:

    0.315 inch

  • Bushing Type:

    1/4-40

  • Center Contact Material:

    COPPER ALLOY

  • Center Contact Plating:

    GOLD

  • Contact (AC) Max Rating R Load:

    6A@125VAC

  • Contact Current(AC)-Max:

    6 A

  • Contact Current(DC)-Max:

    4 A

  • Contact (DC) Max Rating R Load:

    4A@28VDC

  • Contact Function:

    ON-ON

  • Contact Resistance:

    0.02 mΩ

  • Contact Timing:

    BREAK-BEFORE-MAKE

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    28 V

  • Dielectric Withstand Volts:

    1000VAC V

  • Electrical Life:

    60000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Force-Max:

    14.71 N

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Solderability:

    WAVE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    TOGGLE SWITCH

  • Terminal Finish:

    Gold (Au)

  • Terminal Length:

    0.189 inch

  • Termination Type:

    SOLDER
