MTC1528S12 - XP POWER

Description: Isolated Module DC DC Converter 1 Output 12V 1.25A 15.5V - 40V Input

Download MTC1528S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

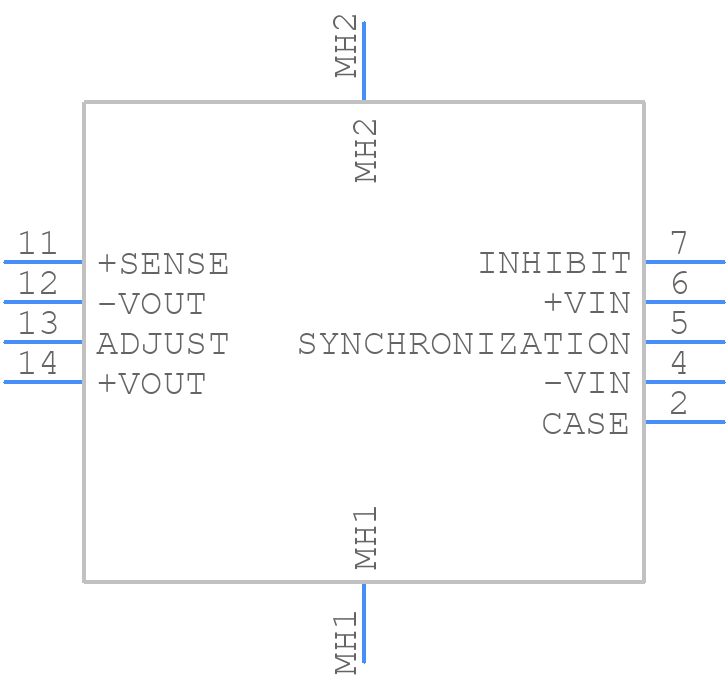

Symbol
MTC1528S12 - XP POWER - PCB symbol
click to zoom

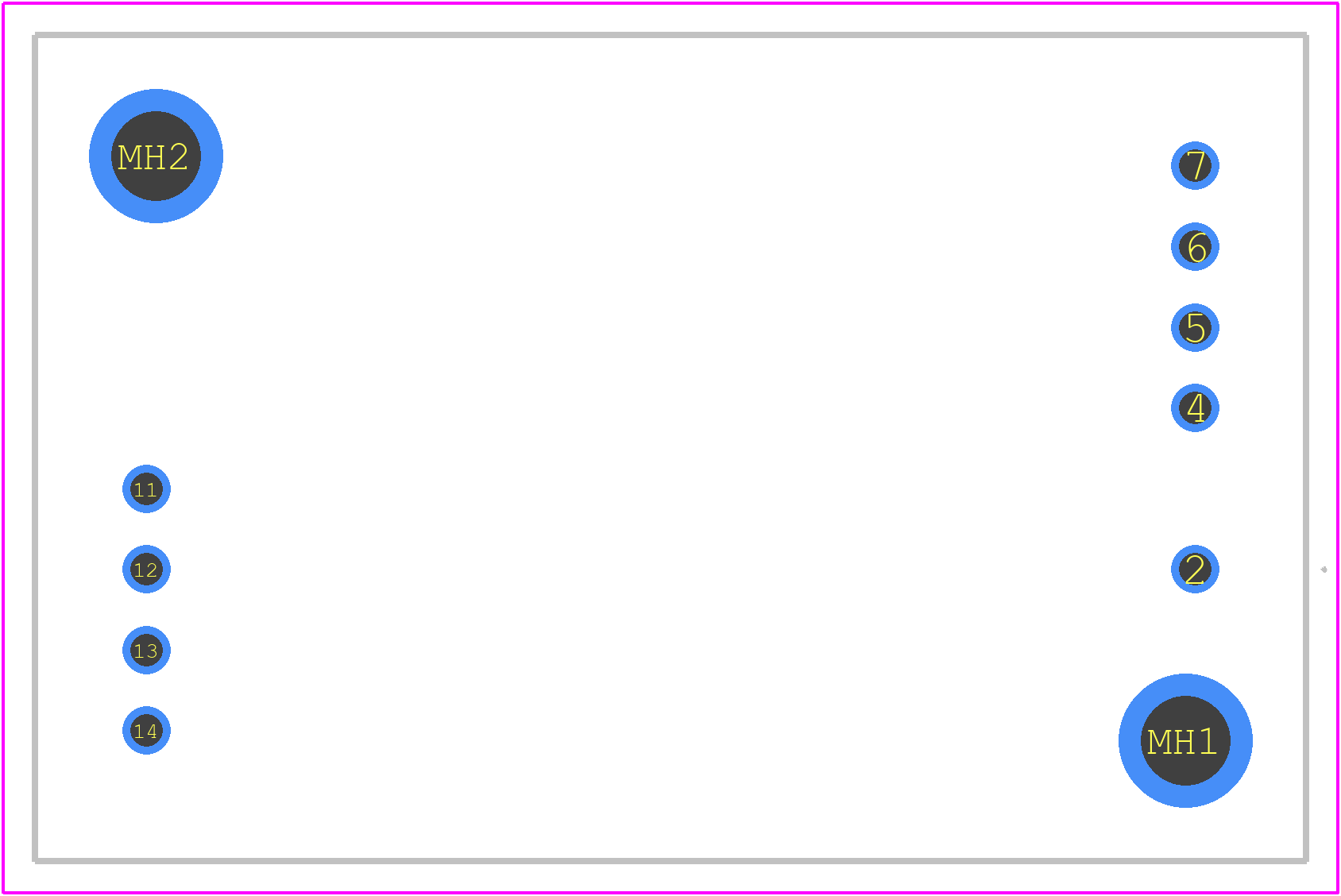

PCB Footprints
MTC1528S12 - XP POWER PCB footprint - Other - Other - MTC1528S12-7
click to zoom
3D Models
MTC1528S12 - XP POWER - 3D model - Other - MTC1528S12-7
click to zoom

MTC1528S12 Details

  • Manufacturer Part Number:

    MTC1528S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    Module-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    15.5 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XDMA-P14

  • Length:

    40 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.8 V

  • Output Voltage-Min:

    9 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    YES

  • Width:

    26 mm

MTC1528S12 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the MTC1528S12 is 0.1uF. Exceeding this value may affect the stability of the output voltage.
  • The MTC1528S12 is rated for operation up to 80°C ambient temperature. However, derating is required for temperatures above 60°C. Consult the datasheet for derating curves.
  • The MTC1528S12 meets various safety certifications, including UL, EN, and IEC. However, specific certifications may require additional testing or documentation. Consult with XP Power or a certified test house for customized certification.
  • Follow the recommended layout and spacing guidelines in the datasheet to ensure proper thermal performance and minimize electromagnetic interference (EMI). A minimum of 5mm clearance around the module is recommended.
  • Yes, the MTC1528S12 can be used in redundant or parallel configurations. However, consult with XP Power or a qualified engineer to ensure proper implementation and thermal management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTC1528S12 Overview

Use the download button to access the MTC1528S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTC15, or try a keyword search, such as Power Supply Modules
