MTC1S2412MC-R13 - Murata Electronics

Description: Isolated DC/DC Converters - SMD 1W 24VIN 12VOUT SM

Download MTC1S2412MC-R13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

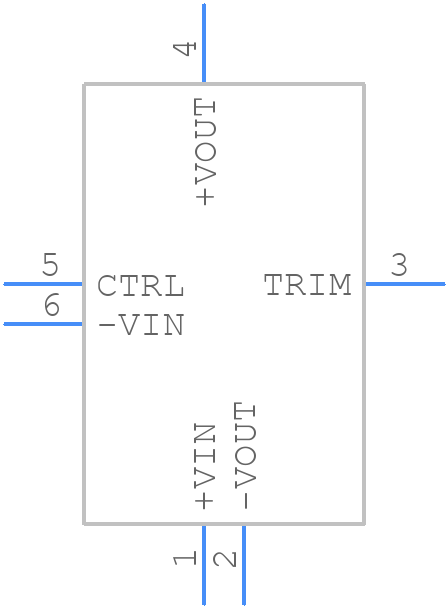

MTC1S2412MC-R13 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
MTC1S2412MC-R13 - Murata Electronics PCB footprint - Other - Other - MTC1S2412MC-R13-1
click to zoom
3D Models
MTC1S2412MC-R13 - Murata Electronics - 3D model - Other - MTC1S2412MC-R13-1
click to zoom

MTC1S2412MC-R13 Details

  • Manufacturer Part Number:

    MTC1S2412MC-R13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, ANSI, AAMI

  • Efficiency (Main Output):

    77%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-X6

  • JESD-609 Code:

    e4

  • Length:

    14.99 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.083 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Protections:

    SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.017675 Vrms

  • Screening Level:

    IEC 60601-1, One MOPP, IEC 60601-1, Two MOOP

  • Seated Height-Max:

    11.75 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.025 s

  • Width:

    14.22 mm

MTC1S2412MC-R13 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MTC1S2412MC-R13 can be found in the Murata Land Pattern Recommendation document, which provides detailed information on the recommended pad layout and dimensions for optimal soldering and reliability.
  • The MTC1S2412MC-R13 is a moisture-sensitive device and should be handled according to the JEDEC J-STD-033 standard. This includes storing the devices in a dry environment, using a dry pack or nitrogen-filled packaging, and following proper baking procedures before reflow soldering.
  • The maximum reflow temperature for the MTC1S2412MC-R13 is 260°C, with a peak temperature not exceeding 240°C for more than 20 seconds. Exceeding this temperature may cause damage to the device or affect its reliability.
  • The MTC1S2412MC-R13 is designed to withstand moderate vibration levels, but it's recommended to consult with Murata's application engineers to determine the suitability of the device for high-vibration environments. Additional testing and evaluation may be required to ensure the device's reliability in such conditions.
  • The recommended cleaning process for the MTC1S2412MC-R13 involves using a mild detergent and deionized water, followed by a thorough drying process to prevent water spots and contamination. Avoid using harsh chemicals, ultrasonic cleaning, or high-pressure washing, as these may damage the device or its components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTC1S2412MC-R13 Overview

Use the download button to access the MTC1S2412MC-R13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTC1S, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
