MTC3528S05 - XP POWER

Description: Isolated DC/DC Converters 35W mil-spec DC-DC converter single output

Download MTC3528S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

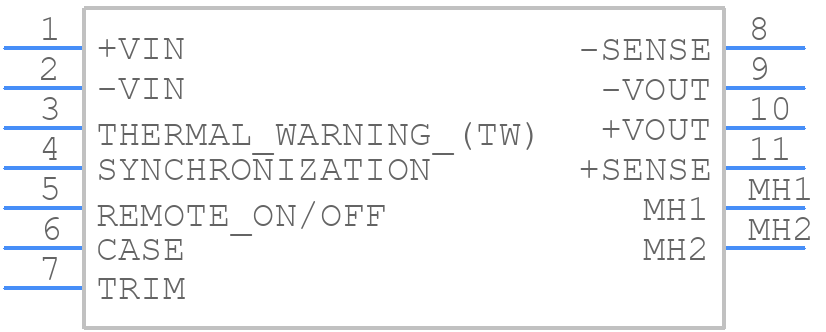

MTC3528S05 - XP POWER - PCB symbol
click to zoom
PCB Footprints

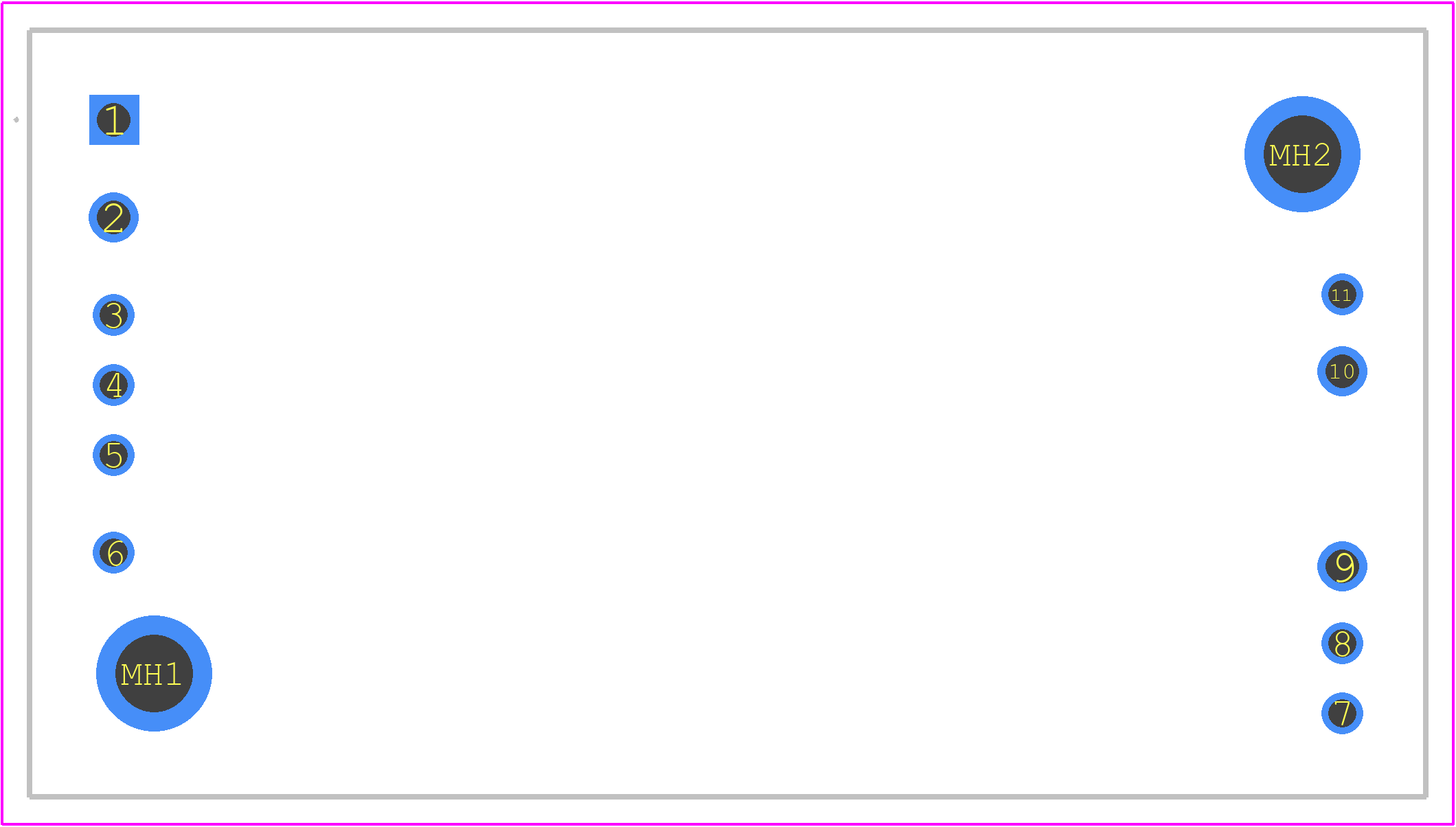

MTC3528S05 - XP POWER PCB footprint - Other - Other - MTC3528S05-2
click to zoom
3D Models
MTC3528S05 - XP POWER - 3D model - Other - MTC3528S05-2
click to zoom

MTC3528S05 Details

  • Manufacturer Part Number:

    MTC3528S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    Module-11

  • Pin Count:

    11

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-PDMA-P11

  • Length:

    50.8 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    35 W

  • Trim/Adjustable Output:

    YES

  • Width:

    27.9 mm

MTC3528S05 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module can also improve heat transfer.
  • To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents. A minimum input capacitance of 10uF is also recommended.
  • The maximum allowable capacitance on the output is 47uF. Exceeding this value may cause instability or oscillation in the module.
  • Yes, the MTC3528S05 can be used in a redundant configuration, but it's essential to ensure that the modules are synchronized to prevent current fighting. XP Power recommends using a synchronization signal to ensure proper operation.
  • The derating curve for the MTC3528S05 is available in the XP Power application note AN-104. It provides a detailed graph of the output power derating versus ambient temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTC3528S05 Overview

Use the download button to access the MTC3528S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTC35, or try a keyword search, such as Power Supply Modules
