MTC5028S28 - XP POWER

Description: Isolated DC/DC Converters - Through Hole 50W mil-spec DC-DC converter single output

Download MTC5028S28 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

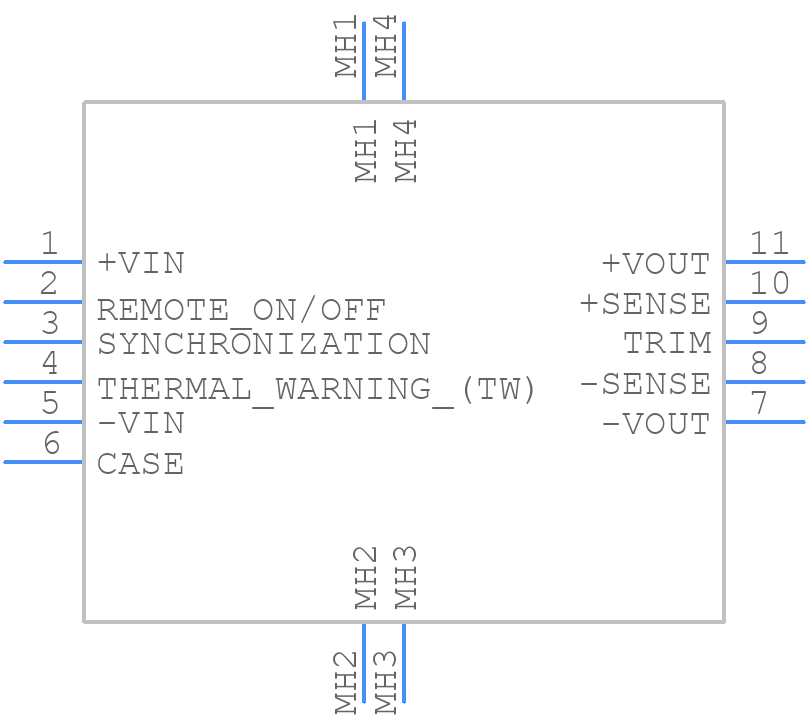

MTC5028S28 - XP POWER - PCB symbol
click to zoom
PCB Footprints

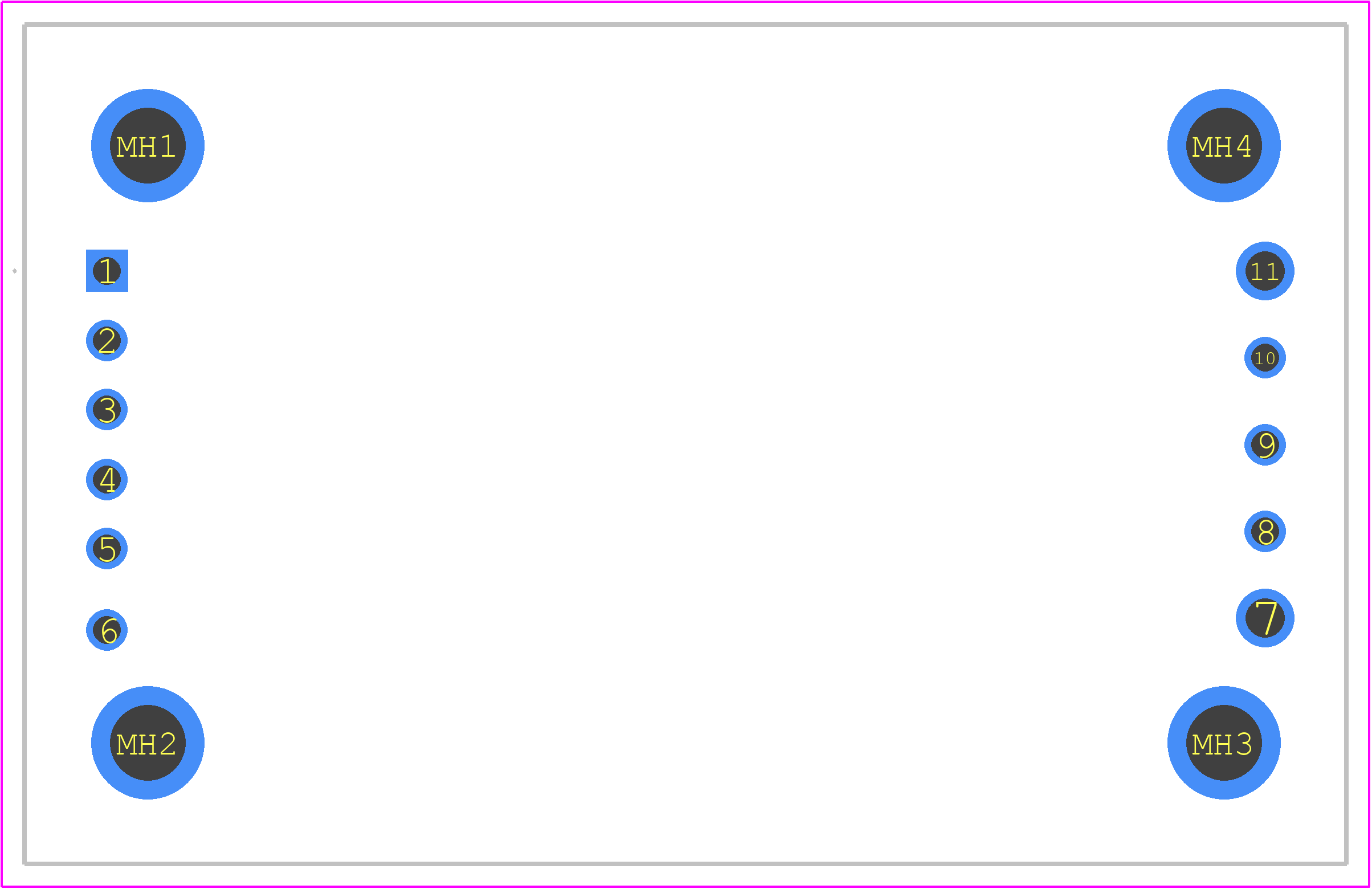

MTC5028S28 - XP POWER PCB footprint - Other - Other - MTC5028S28-2
click to zoom
3D Models
MTC5028S28 - XP POWER - 3D model - Other - MTC5028S28-2
click to zoom

MTC5028S28 Details

  • Manufacturer Part Number:

    MTC5028S28

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    Module-11

  • Pin Count:

    11

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-PDMA-P11

  • Length:

    50.8 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage-Max:

    30.8 V

  • Output Voltage-Min:

    22.4 V

  • Output Voltage-Nom:

    28 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    50 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.8 mm

MTC5028S28 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary.
  • The maximum allowable capacitance for the output filter is 10uF, as specified in the datasheet. Exceeding this value may affect the stability of the output voltage.
  • Yes, the MTC5028S28 is designed to withstand vibrations up to 10G peak acceleration, but it's recommended to follow the mounting and screw torque guidelines in the datasheet to ensure reliable operation.
  • XP Power recommends following the troubleshooting guide in the datasheet, which includes checking the input voltage, output voltage, and fault signals, as well as verifying the correct installation and configuration of the module.
