MTCH1010-V/SN - Microchip

Description: Proximity Sensors Single channel touch turnkey device with GPIO output and configuration. Its supports robust low power and water tolerant touch

Download MTCH1010-V/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

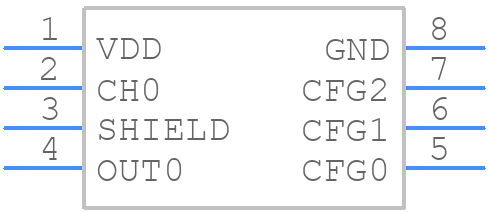

MTCH1010-V/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MTCH1010-V/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MTCH1010-V/SN
click to zoom
3D Models
MTCH1010-V/SN - Microchip - 3D model - Small Outline Packages - MTCH1010-V/SN
click to zoom

MTCH1010-V/SN Details

  • Manufacturer Part Number:

    MTCH1010-V/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Taiwan, Thailand

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Additional Feature:

    SEATED HGT MIN

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.25 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.60-2.40

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CAPACITIVE TOUCH SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Surface Mount:

    YES

  • Technology:

    MOC

  • Terminal Finish:

    Matte Tin (Sn)

MTCH1010-V/SN Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • The MTCH1010-V/SN has an internal calibration mechanism. However, it's recommended to perform an external calibration using an external voltage reference and a precision resistor divider network to achieve optimal accuracy.
  • The maximum allowed voltage on the input pins is 5.5V. Exceeding this voltage may damage the device. Ensure that the input voltage is within the recommended operating range to prevent damage.
  • The MTCH1010-V/SN is rated for operation up to 125°C. However, the device's accuracy and reliability may degrade at high temperatures. Ensure proper thermal management and consider using a heat sink if operating in high-temperature environments.
  • Start by checking the power supply voltage, clock frequency, and input signal integrity. Use an oscilloscope to verify the input signals and check for any noise or distortion. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTCH1010-V/SN Overview

Use the download button to access the MTCH1010-V/SN schematic symbol, PCB footprint, and 3D model.
