MTCH102-I/MS - Microchip

Description: Cap Touch Controller 2-Ch 3.3V MSOP-8 MTCH102-I/MS, Capacitive Touch Screen Controller Simple I/O, 8-Pin MSOP

Download MTCH102-I/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

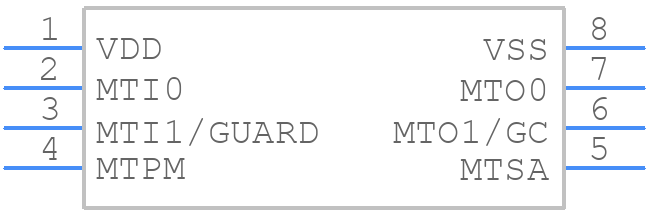

MTCH102-I/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MTCH102-I/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MSOP
click to zoom
3D Models
MTCH102-I/MS - Microchip - 3D model - Small Outline Packages - MSOP
click to zoom

MTCH102-I/MS Details

  • Manufacturer Part Number:

    MTCH102-I/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

MTCH102-I/MS Frequently Asked Questions (FAQs)

  • A good PCB layout for the MTCH102-I/MS involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper powering and decoupling, use a high-quality power supply with low ripple and noise, and decouple the device with a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close to the device as possible.
  • The MTCH102-I/MS has an operating temperature range of -40°C to +125°C, but it's recommended to operate within -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MTCH102-I/MS, start by checking the power supply and decoupling, then verify the input and output signals using an oscilloscope. Check for any signs of overheating, and ensure the device is properly soldered and mounted.
  • The MTCH102-I/MS is a commercial-grade device, but it can be used in high-reliability or safety-critical applications with proper design, testing, and validation. However, it's recommended to consult with Microchip Technology Inc. and follow their guidelines for using the device in such applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTCH102-I/MS Overview

Use the download button to access the MTCH102-I/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTCH1, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
