MTCH108-I/GZ - Microchip

Description: MTCH108-I/GZ, Capacitive Touch Controller IC, 20-Pin UQFN

Download MTCH108-I/GZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

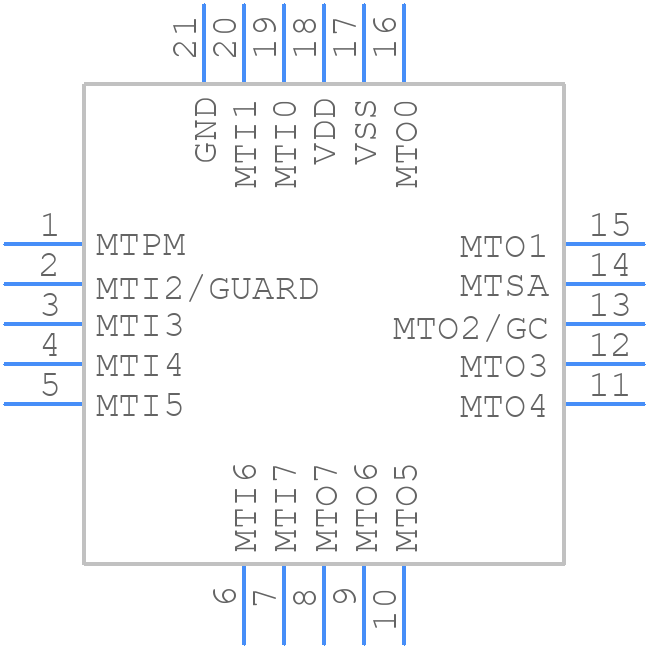

MTCH108-I/GZ - Microchip - PCB symbol
click to zoom
PCB Footprints
MTCH108-I/GZ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MTCH108-I/GZ
click to zoom
3D Models
MTCH108-I/GZ - Microchip - 3D model - Quad Flat No-Lead - MTCH108-I/GZ
click to zoom

MTCH108-I/GZ Details

  • Manufacturer Part Number:

    MTCH108-I/GZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    UQFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn)

MTCH108-I/GZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a metal shield around the device, keep the PCB layout compact, and use a common mode choke or ferrite bead on the power lines to reduce EMI emissions.
  • The MTCH108-I/GZ can operate from -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • The POR and BOR features are enabled by default. Use the POR and BOR pins to connect to a capacitor and a resistor to set the reset threshold and timeout period.
  • Yes, the MTCH108-I/GZ can operate from a 1.8V to 5.5V power supply, including 3.3V. However, ensure the input voltage is within the recommended operating range for optimal performance.
