8 X 8 MM, 0.90 MM HEIGHT, LEAD FREE, PLASTIC, QFN-44
Pin Count:
44
Manufacturer Package Code:
QFN-44
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.31.00.01
Factory Lead Time:
14 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
3
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
S-PQCC-N44
JESD-609 Code:
e3
Length:
8 mm
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
44
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC44,.3SQ,25
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Screening Level:
TS 16949
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
2.3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
QUAD
Width:
8 mm
MTCH6301-I/ML Frequently Asked Questions (FAQs)
Microchip provides a recommended PCB layout guide in the MTCH6301-I/ML datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, it's recommended to follow general best practices for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
The MTCH6301-I/ML can be configured for I2C or SPI communication through the use of external resistors and capacitors. For I2C, connect the SCL and SDA pins to the desired I2C bus, and for SPI, connect the SCK, MOSI, and MISO pins to the desired SPI bus. Refer to the datasheet for specific pin connections and configuration details.
The MTCH6301-I/ML has a maximum operating frequency of 100 MHz, but this can be limited by the specific application and PCB design. It's recommended to consult the datasheet and perform simulations to determine the optimal operating frequency for your specific use case.
The MTCH6301-I/ML has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement proper thermal management techniques, such as using a heat sink, thermal vias, and thermal interface materials. Refer to the datasheet for thermal management guidelines and recommendations.
The MTCH6301-I/ML requires a specific power sequencing to ensure proper operation. The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. Refer to the datasheet for detailed power sequencing guidelines and recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MTCH6301-I/ML Overview

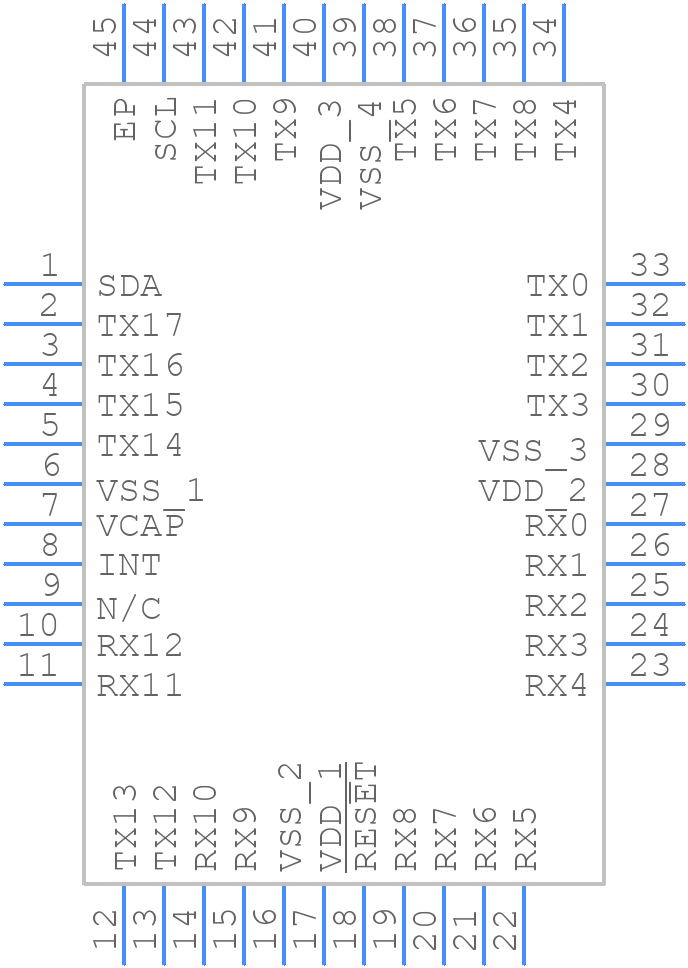

Use the download button to access the MTCH6301-I/ML schematic symbol, PCB footprint, and 3D model.
