MTCH6301-I/PT - Microchip

Description: Capacitive Touch Controller,I2C,TQFP 44 MTCH6301-I/PT, Capacitive Touch Screen Controller, 12 bit I2C, 44-Pin TQFP

Download MTCH6301-I/PT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

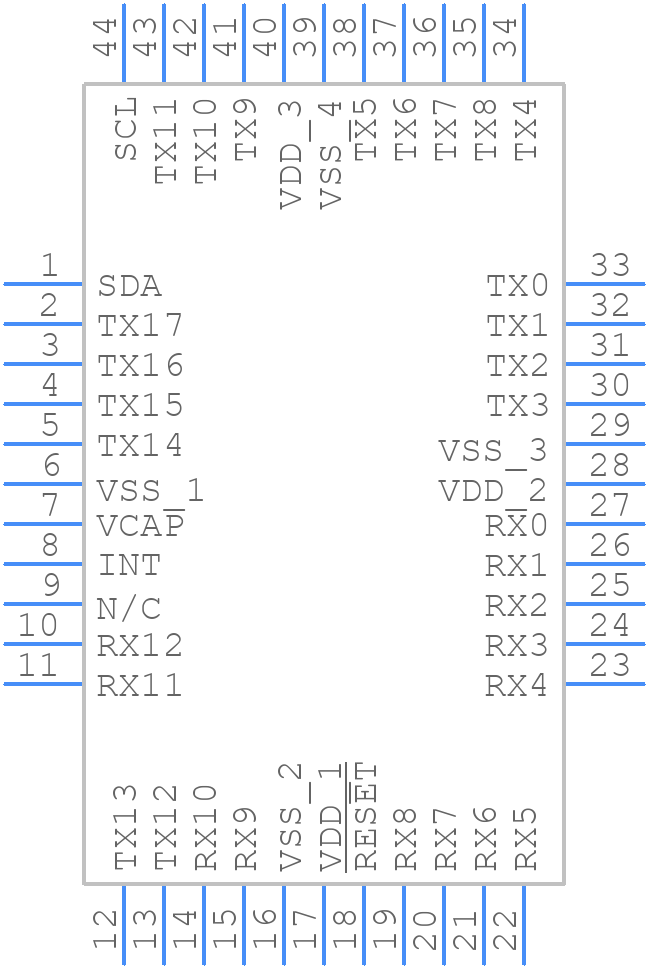

MTCH6301-I/PT - Microchip - PCB symbol
click to zoom
PCB Footprints
MTCH6301-I/PT - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - (PT)44-Lead(TQFP)
click to zoom
3D Models
MTCH6301-I/PT - Microchip - 3D model - Quad Flat Packages - (PT)44-Lead(TQFP)
click to zoom

MTCH6301-I/PT Details

  • Manufacturer Part Number:

    MTCH6301-I/PT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    10 X 10 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    TQFP-44

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP44,.4SQ,31

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

MTCH6301-I/PT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a reliable communication protocol such as I2C or SPI, and ensure that the clock frequency and data transmission rates are within the specified limits. Also, use a pull-up resistor on the SDA line and a pull-down resistor on the SCL line.
  • The MTCH6301-I/PT can drive up to 400 pF of capacitive load on the output pins. Exceeding this limit may affect the device's performance and reliability.
  • Use a heat sink or a thermal pad to dissipate heat away from the device. Ensure good airflow around the device, and avoid blocking the airflow with other components or obstacles.
  • Power up the device in the following sequence: VDD, AVDD, and then the digital supply voltage. Ensure that the power supplies are stable and within the specified voltage ranges before applying the clock signal.
