MTFC64GASAQHD-IT - Micron

Description: eMMC uSSD 512G

Download MTFC64GASAQHD-IT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

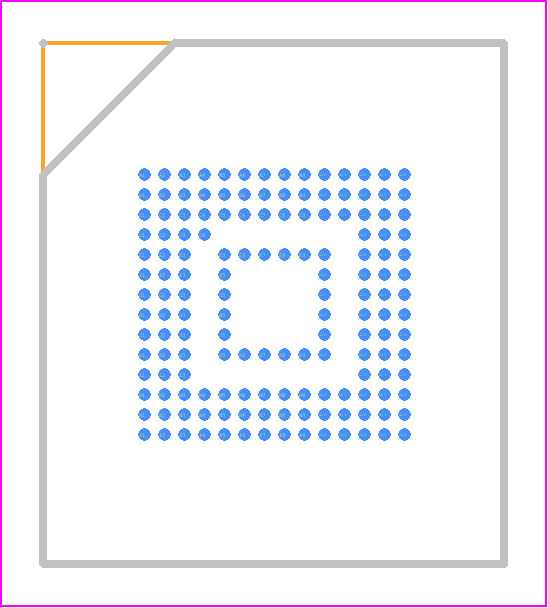

MTFC64GASAQHD-IT - Micron PCB footprint - BGA - BGA - 153-Ball VFBGA – 11.5mm x 13.0mm x 0.9mm
click to zoom
3D Models
MTFC64GASAQHD-IT - Micron  - 3D model - BGA - 153-Ball VFBGA – 11.5mm x 13.0mm x 0.9mm
click to zoom

MTFC64GASAQHD-IT Details

  • Manufacturer Part Number:

    MTFC64GASAQHD-IT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFBGA-153

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Micron Technology Inc

  • YTEOL:

    7

  • Clock Frequency-Max (fCLK):

    200 MHz

  • Data Retention Time-Min:

    5

  • JESD-30 Code:

    R-PBGA-B153

  • Length:

    13 mm

  • Memory Density:

    549755813888 bit

  • Memory IC Type:

    FLASH CARD

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    153

  • Number of Words:

    68719476736 words

  • Number of Words Code:

    64000000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64GX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA153,14X14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    PARALLEL

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NAND TYPE

  • Width:

    11.5 mm

MTFC64GASAQHD-IT Frequently Asked Questions (FAQs)

  • The MTFC64GASAQHD-IT has an industrial temperature range of -40°C to 85°C.
  • To ensure reliable data retention, it's essential to follow the recommended usage and storage guidelines, including operating within the specified temperature range, avoiding physical stress, and using the device within its specified lifespan.
  • The typical power consumption of the MTFC64GASAQHD-IT is around 2.5mA (active) and 1.5mA (standby) at a supply voltage of 3.3V.
  • To minimize power consumption, you can use the device's sleep mode by sending a sleep command (CMD15) to the eMMC interface. This will put the device into a low-power state, reducing power consumption to around 1.5mA.
  • The recommended storage condition for the MTFC64GASAQHD-IT is in a dry, cool place, away from direct sunlight, moisture, and extreme temperatures. It's also essential to store the device in its original packaging or an equivalent ESD-protective package.
