MTJ-88FX1-FS footprint, schematic symbol and 3D model by Adam Tech

Symbol

click to zoom

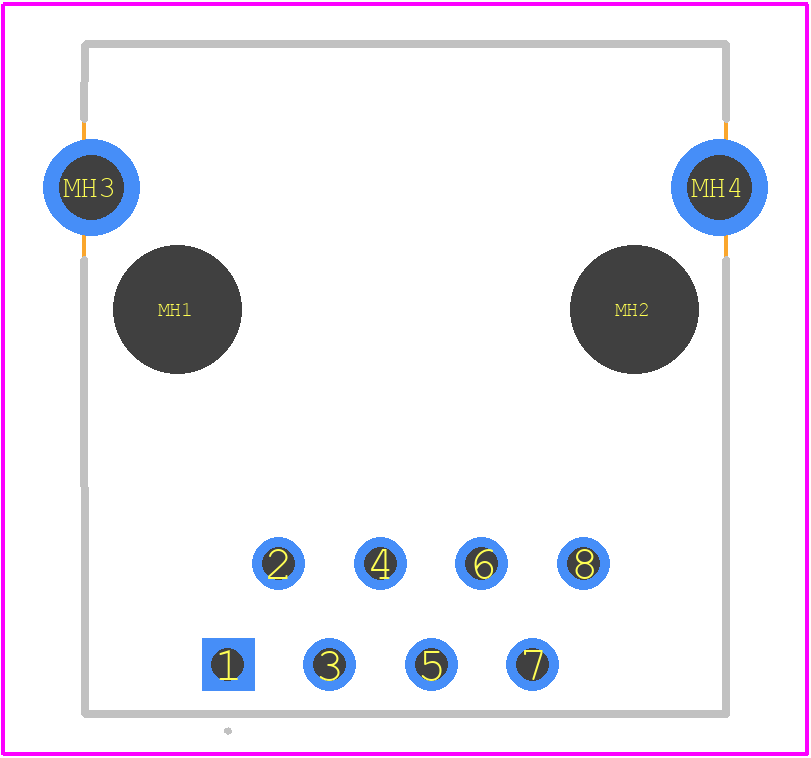

PCB Footprints

MTJ-88FX1-FS - Adam Tech PCB footprint - Other - Other - MTJ-88FX1-FS-3

click to zoom

3D Models

MTJ-88FX1-FS - Adam Tech - 3D model - Other - MTJ-88FX1-FS-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MTJ-88FX1-FS
Part Number MTJ-88FX1-FS
Manufacturer Adam Tech
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - MTJ-88FX1-FS-3
Released Date Oct 10, 2023
Last Modified Date Oct 10, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

MTJ-88FX1-FS Details

Manufacturer Part Number:
MTJ-88FX1-FS
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Adam Technologies Inc
YTEOL:
8
Additional Feature:
SHIELDED
Body/Shell Style:
JACK
Connector Type:
RJ CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Material:
ABS/NYLON/POLYBUTYLENE TEREPHTHALATE
Termination Type:
SOLDER
Total Number of Contacts:
8
UL Flammability Code:
94V-0

MTJ-88FX1-FS Frequently Asked Questions (FAQs)

The recommended storage temperature range for the MTJ-88FX1-FS is -40°C to 125°C.
Yes, the MTJ-88FX1-FS is designed to operate in humid environments, but it's recommended to follow the manufacturer's guidelines for humidity levels to ensure optimal performance.
The maximum operating frequency of the MTJ-88FX1-FS is 100 MHz, but it's recommended to consult the datasheet for specific frequency-related specifications.
Yes, the MTJ-88FX1-FS is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperatures and profiles.
The typical power consumption of the MTJ-88FX1-FS varies depending on the operating frequency and mode. Consult the datasheet for specific power consumption values.

Trust Checks

Community Provided

System Verified

Community Approved

MTJ-88FX1-FS Overview

Use the download button to access the MTJ-88FX1-FS schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MTJ-8, or try a keyword search, such as Telecom and Datacom Connectors
