The operating temperature range is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance may degrade at extreme temperatures, and it's recommended to operate within the recommended temperature range for optimal performance.
To ensure reliability in high-vibration environments, it's crucial to follow proper mounting and soldering techniques, as specified in the datasheet. Additionally, consider using vibration-dampening materials or potting compounds to reduce the impact of vibrations on the device.
The recommended storage condition for the MTJ-88TUX1-FS2-PG2T-L5-C6A-HT is in a dry, cool place, away from direct sunlight and moisture. It's essential to store the devices in their original packaging or in a similar environment to prevent damage from electrostatic discharge (ESD) or physical stress.
While the MTJ-88TUX1-FS2-PG2T-L5-C6A-HT is designed to operate in a wide range of temperatures, it's not recommended for use in extremely humid environments. If you must operate the device in a humid environment, ensure that it's properly sealed and consider using moisture-resistant coatings or conformal coatings to protect the device.
The recommended soldering profile for the MTJ-88TUX1-FS2-PG2T-L5-C6A-HT is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second. It's essential to follow the recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MTJ-88TUX1-FS2-PG2T-L5-C6A-HT Overview

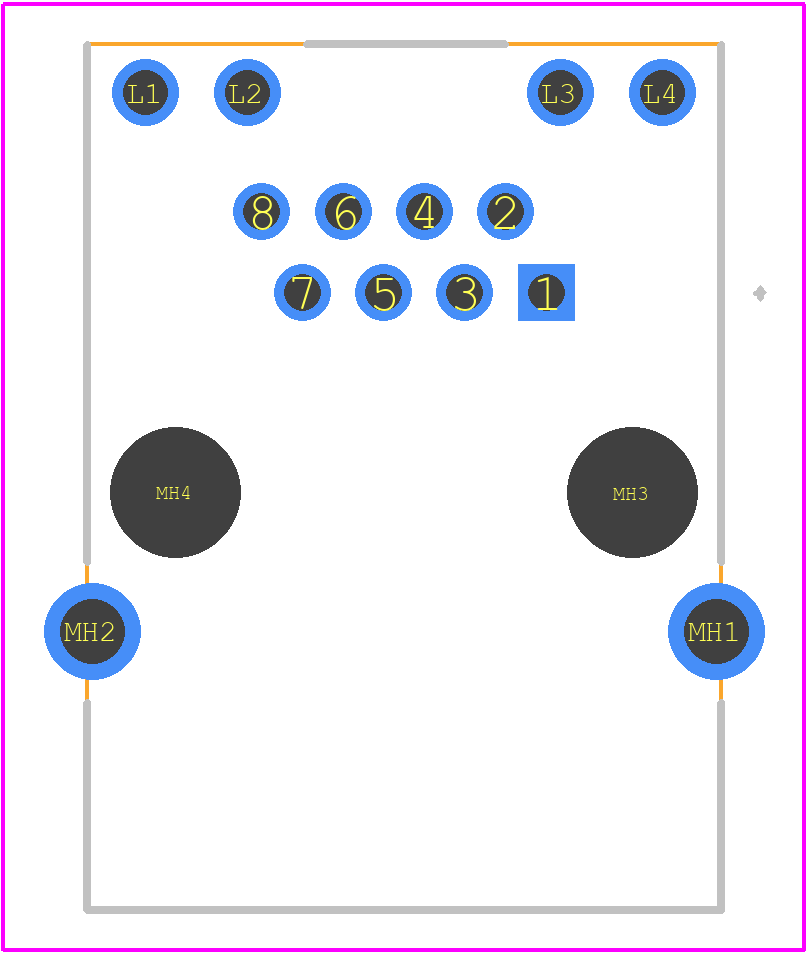

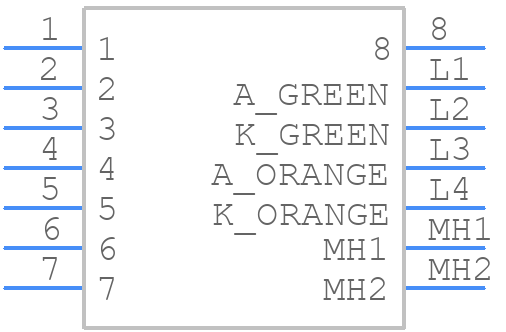

Use the download button to access the MTJ-88TUX1-FS2-PG2T-L5-C6A-HT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTJ-8,
or try a keyword search, such as Telecom and Datacom Connectors
