MTJG-2-88ARX1C-LE footprint, schematic symbol and 3D model by Adam Tech

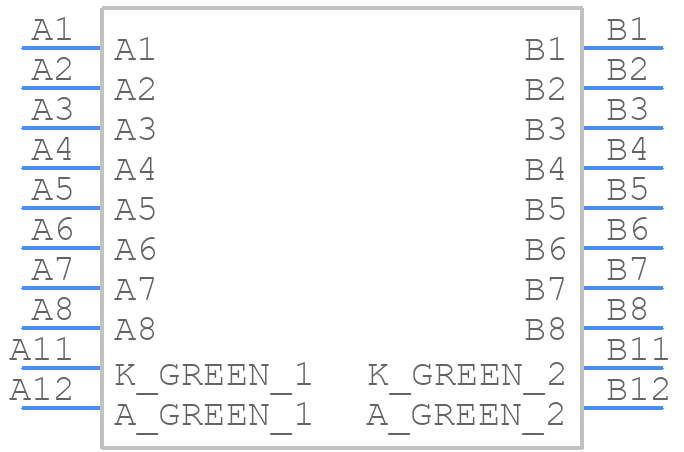

Symbol

click to zoom

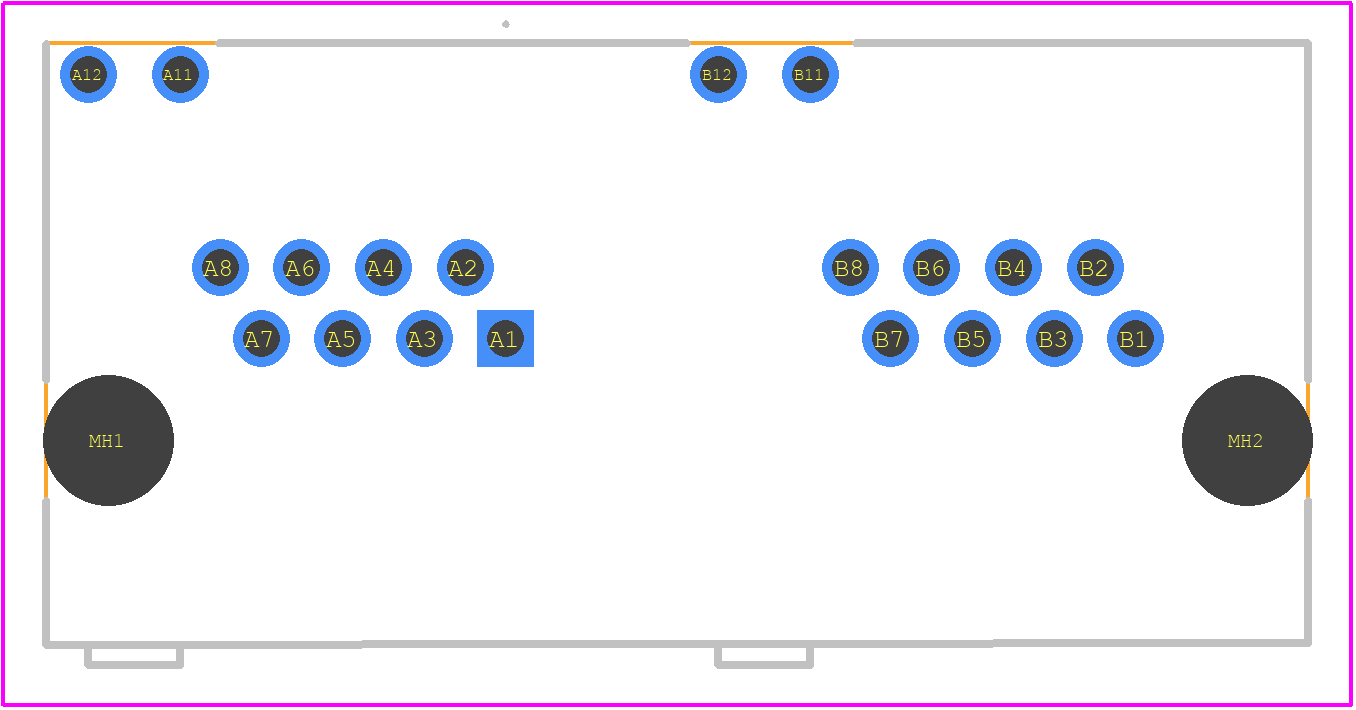

PCB Footprints

MTJG-2-88ARX1C-LE - Adam Tech PCB footprint - Other - Other - MTJG-2-88ARX1C-LE-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MTJG-2-88ARX1C-LE
Part Number MTJG-2-88ARX1C-LE
Manufacturer Adam Tech
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - MTJG-2-88ARX1C-LE-2
Released Date Aug 6, 2026
Last Modified Date Aug 6, 2026 12:48 PM UTC
Pinout / Pin List Click Here (Member Only)

MTJG-2-88ARX1C-LE Details

Manufacturer Part Number:
MTJG-2-88ARX1C-LE
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Adam Technologies Inc
Connector Type:
RJ CONNECTOR

MTJG-2-88ARX1C-LE Frequently Asked Questions (FAQs)

The recommended storage temperature for MTJG-2-88ARX1C-LE is -40°C to 125°C, as per the manufacturer's guidelines.
Yes, the MTJG-2-88ARX1C-LE is designed to withstand high-vibration environments, with a vibration resistance of 10G peak acceleration.
The typical lead time for MTJG-2-88ARX1C-LE is 8-12 weeks, but it may vary depending on the quantity and availability.
Yes, the MTJG-2-88ARX1C-LE is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
Yes, the MTJG-2-88ARX1C-LE is designed to operate in humid environments, with a humidity range of 5% to 95% RH.

Trust Checks

Community Provided

System Verified

Community Approved

MTJG-2-88ARX1C-LE Overview

Use the download button to access the MTJG-2-88ARX1C-LE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MTJG-, or try a keyword search, such as Telecom and Datacom Connectors
