- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MTMM-104-04-L-D-183
- Part Number MTMM-104-04-L-D-183
- Manufacturer SAMTEC
- Pin Count 8
- Part Category Connector
- Package Category Header, Vertical

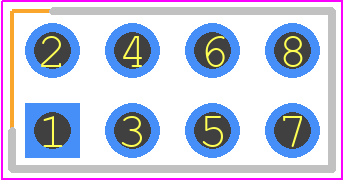

- Footprint Name Header, Vertical - MTMM-104-04-L-D-183
- Released Date Jul 8, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MTMM-104-04-L-D-183 Details
-
Manufacturer Part Number:
MTMM-104-04-L-D-183
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Samtec Inc
-
YTEOL:
9
-
Body Breadth:
0.155 inch
-
Body Depth:
0.059 inch
-
Body Length:
0.315 inch
MTMM-104-04-L-D-183 Frequently Asked Questions (FAQs)
-
The recommended mating sequence is to mate the connectors in a perpendicular orientation, then rotate them into their final position to ensure proper engagement of the contacts.
-
To ensure proper polarization, align the keying feature on the plug connector with the corresponding keyway on the receptacle connector. This will prevent mis-mating and ensure correct orientation.
-
The MTMM-104-04-L-D-183 connector is rated for operation in the temperature range of -55°C to +125°C.
-
Yes, the MTMM-104-04-L-D-183 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and installation procedures to ensure reliable performance.
-
The recommended torque value for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm). Over-torquing can damage the connector, so it's essential to follow the recommended torque specification.
Trust Checks
Community Provided
System Verified
Community Approved
MTMM-104-04-L-D-183 Overview
Use the download button to access the MTMM-104-04-L-D-183 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTMM-,
or try a keyword search, such as Headers and Edge Type Connectors
