MTMM-105-05-L-D-175 - SAMTEC

Description: Conn Unshrouded Header HDR 10 POS 2mm Solder ST Top Entry Thru-Hole Bulk

Download MTMM-105-05-L-D-175 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

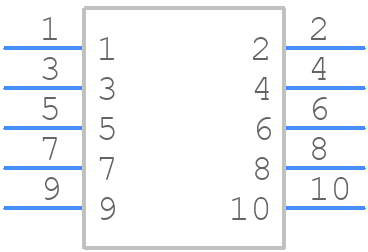

MTMM-105-05-L-D-175 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

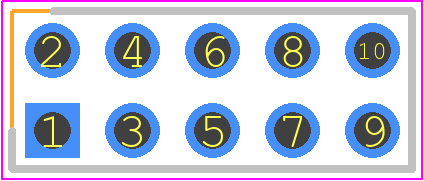

MTMM-105-05-L-D-175 - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - MTMM-105-05-L-D-175
click to zoom
3D Models
MTMM-105-05-L-D-175 - SAMTEC - 3D model - Header, Vertical - MTMM-105-05-L-D-175
click to zoom

MTMM-105-05-L-D-175 Details

  • Manufacturer Part Number:

    MTMM-105-05-L-D-175

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Body Breadth:

    0.155 inch

  • Body Depth:

    0.059 inch

  • Body Length:

    0.394 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2 mm

  • Rated Current (Signal):

    3.2 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

MTMM-105-05-L-D-175 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure secure mating and prevent damage to the connector.
  • Yes, the MTMM-105-05-L-D-175 is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
  • The maximum operating temperature for the MTMM-105-05-L-D-175 is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the MTMM-105-05-L-D-175 is compatible with lead-free soldering processes. Samtec recommends following the IPC J-STD-020D standard for lead-free soldering.
  • The MTMM-105-05-L-D-175 is not designed for use in humid or wet environments. If exposure to moisture is a concern, consider using a connector with a higher IP rating or applying a conformal coating to the connector.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTMM-105-05-L-D-175 Overview

Use the download button to access the MTMM-105-05-L-D-175 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTMM-, or try a keyword search, such as Headers and Edge Type Connectors
