MTMM-110-12-F-D-451 - SAMTEC

Description: Headers & Wire Housings 2.00 mm Variable Post Height Terminal Strip

Download MTMM-110-12-F-D-451 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MTMM-110-12-F-D-451 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

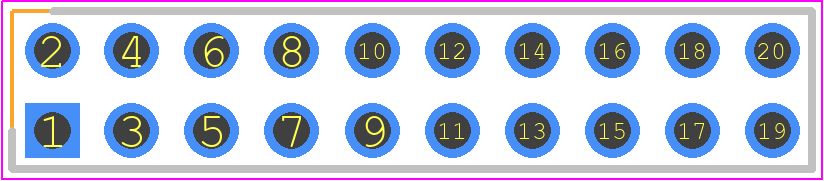

MTMM-110-12-F-D-451 - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - MTMM-110-12-F-D-451
click to zoom
3D Models
MTMM-110-12-F-D-451 - SAMTEC - 3D model - Header, Vertical - MTMM-110-12-F-D-451
click to zoom

MTMM-110-12-F-D-451 Details

  • Manufacturer Part Number:

    MTMM-110-12-F-D-451

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Body Breadth:

    0.155 inch

  • Body Depth:

    0.059 inch

  • Body Length:

    0.787 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2 mm

  • Rated Current (Signal):

    3.2 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

MTMM-110-12-F-D-451 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the MTMM-110-12-F-D-451 is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's general guidelines for their micro-pitch board-to-board connectors.
  • Yes, the MTMM-110-12-F-D-451 is designed to withstand high-vibration environments. Samtec's micro-pitch board-to-board connectors are tested to meet the IEC 61373 Cat 2 vibration standard, which includes sinusoidal vibration at 10-2000 Hz and random vibration at 10-2000 Hz.
  • The maximum operating temperature for the MTMM-110-12-F-D-451 is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
  • The MTMM-110-12-F-D-451 is not designed for use in wet or humid environments. Samtec recommends using their connectors in environments with a relative humidity of 90% or less. For applications in humid or wet environments, consider using Samtec's sealed or waterproof connectors.
  • The mating cycle life of the MTMM-110-12-F-D-451 is 500 cycles minimum according to Samtec's datasheet. This means the connector can withstand at least 500 mating and unmating cycles without significant degradation in performance.
