MTMM-113-06-S-D-190 - SAMTEC

Description: Variable Post Height Header Strips, 2.00 mm Pitch 26 Position

Download MTMM-113-06-S-D-190 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MTMM-113-06-S-D-190 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

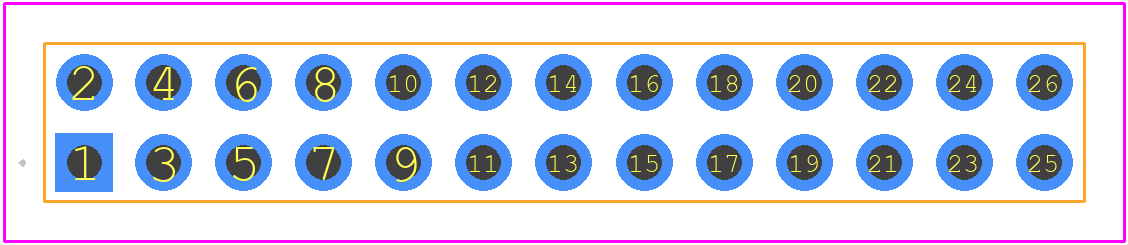

MTMM-113-06-S-D-190 - SAMTEC PCB footprint - Other - Other - MTMM-113-06-S-D-190-1
click to zoom
3D Models
MTMM-113-06-S-D-190 - SAMTEC - 3D model - Other - MTMM-113-06-S-D-190-1
click to zoom

MTMM-113-06-S-D-190 Details

  • Manufacturer Part Number:

    MTMM-113-06-S-D-190

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Body Breadth:

    0.155 inch

  • Body Depth:

    0.059 inch

  • Body Length:

    1.024 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2 mm

  • Rated Current (Signal):

    3.2 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

MTMM-113-06-S-D-190 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the MTMM-113-06-S-D-190 is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's general guidelines for M3 screws.
  • Yes, the MTMM-113-06-S-D-190 is designed to withstand vibration and can be used in high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
  • The maximum operating temperature for the MTMM-113-06-S-D-190 is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's performance at higher temperatures and to consult with a Samtec representative for specific application requirements.
  • The MTMM-113-06-S-D-190 is not designed for use in wet or humid environments. It's recommended to use a connector with a higher IP rating or to apply a conformal coating to protect the connector from moisture.
  • The mating cycle life of the MTMM-113-06-S-D-190 is 500 cycles minimum according to Samtec's datasheet. However, this can vary depending on the application and usage.
