MTMM-113-07-S-S-235 - SAMTEC

Description: Headers & Wire Housings 2.00 mm Variable Post Height Terminal Strip

Download MTMM-113-07-S-S-235 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

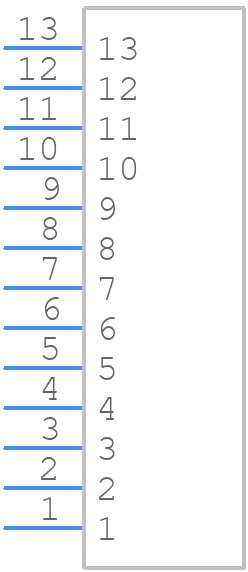

MTMM-113-07-S-S-235 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

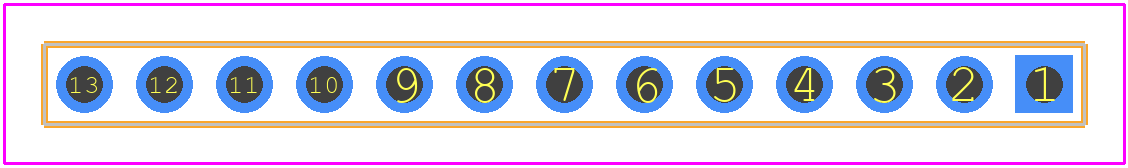

MTMM-113-07-S-S-235 - SAMTEC PCB footprint - Other - Other - MTMM-113-07-S-S-235-1
click to zoom
3D Models
MTMM-113-07-S-S-235 - SAMTEC - 3D model - Other - MTMM-113-07-S-S-235-1
click to zoom

MTMM-113-07-S-S-235 Details

  • Manufacturer Part Number:

    MTMM-113-07-S-S-235

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.059 inch

  • Body Length:

    1.024 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    3.2 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    13

  • UL Flammability Code:

    94V-0

MTMM-113-07-S-S-235 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the MTMM-113-07-S-S-235 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the MTMM-113-07-S-S-235 connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
  • The maximum operating temperature for the MTMM-113-07-S-S-235 connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's performance at higher temperatures to ensure reliable operation.
  • The MTMM-113-07-S-S-235 connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher ingress protection rating (IP67 or higher) for such applications.
  • The recommended mating cycle for the MTMM-113-07-S-S-235 connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and usage.
