MTMM-130-10-G-Q-355 - SAMTEC

Description: Conn Unshrouded Header HDR 120 POS 2mm Solder ST Top Entry Thru-Hole Bulk

Download MTMM-130-10-G-Q-355 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MTMM-130-10-G-Q-355 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

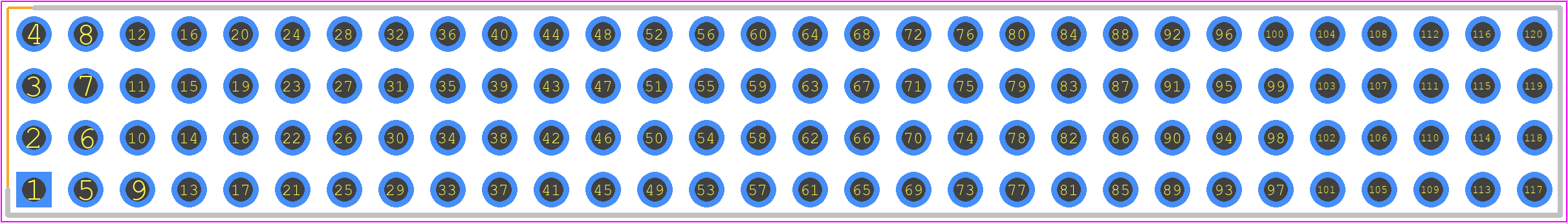

MTMM-130-10-G-Q-355 - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - MTMM-130-10-G-Q-355
click to zoom
3D Models
MTMM-130-10-G-Q-355 - SAMTEC - 3D model - Header, Vertical - MTMM-130-10-G-Q-355
click to zoom

MTMM-130-10-G-Q-355 Details

  • Manufacturer Part Number:

    MTMM-130-10-G-Q-355

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Additional Feature:

    FLEXYZ

  • Body Breadth:

    0.315 inch

  • Body Depth:

    0.059 inch

  • Body Length:

    2.362 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (20) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2 mm

  • Rated Current (Signal):

    3.2 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    120

MTMM-130-10-G-Q-355 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the MTMM-130-10-G-Q-355 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the MTMM-130-10-G-Q-355 connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
  • The maximum operating temperature for the MTMM-130-10-G-Q-355 connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
  • The MTMM-130-10-G-Q-355 connector is not sealed or waterproof, so it's not recommended for use in humid or wet environments. If exposure to moisture is a concern, consider using a sealed or waterproof connector or applying additional protection measures.
  • The mating cycle life of the MTMM-130-10-G-Q-355 connector is 500 cycles minimum according to Samtec's datasheet. However, this may vary depending on the specific application, mating force, and environmental conditions.
