Vishay provides a recommended PCB layout and land pattern in their application note AN42172, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
The MTPL-2516-S12V has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow Vishay's thermal management guidelines in their application notes. Additionally, consider using thermal interface materials and thermal vias to improve heat dissipation.
The derating curve is not explicitly provided in the datasheet, but it can be obtained by contacting Vishay's technical support or through their sales representatives. The derating curve helps determine the maximum allowable current at a given temperature. Apply the derating curve by using the provided graph or formula to calculate the maximum current based on the operating temperature.
Yes, the MTPL-2516-S12V is sensitive to electrostatic discharge (ESD). Follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and ensure that all equipment and tools are properly grounded. Additionally, avoid touching the component's pins or leads, and use antistatic packaging and storage materials.
While the MTPL-2516-S12V is a robust component, it's essential to evaluate its suitability for high-vibration or high-shock environments. Vishay provides some guidance on vibration and shock testing in their application notes, but it's recommended to consult with their technical support or perform custom testing to ensure the component's reliability in such environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MTPL-2516-S12V Overview

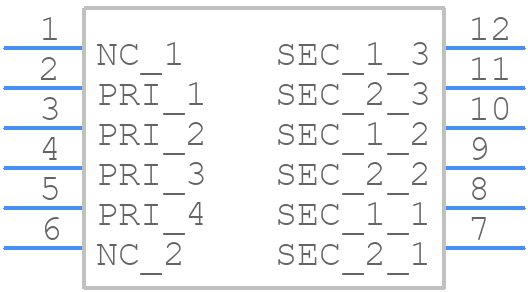

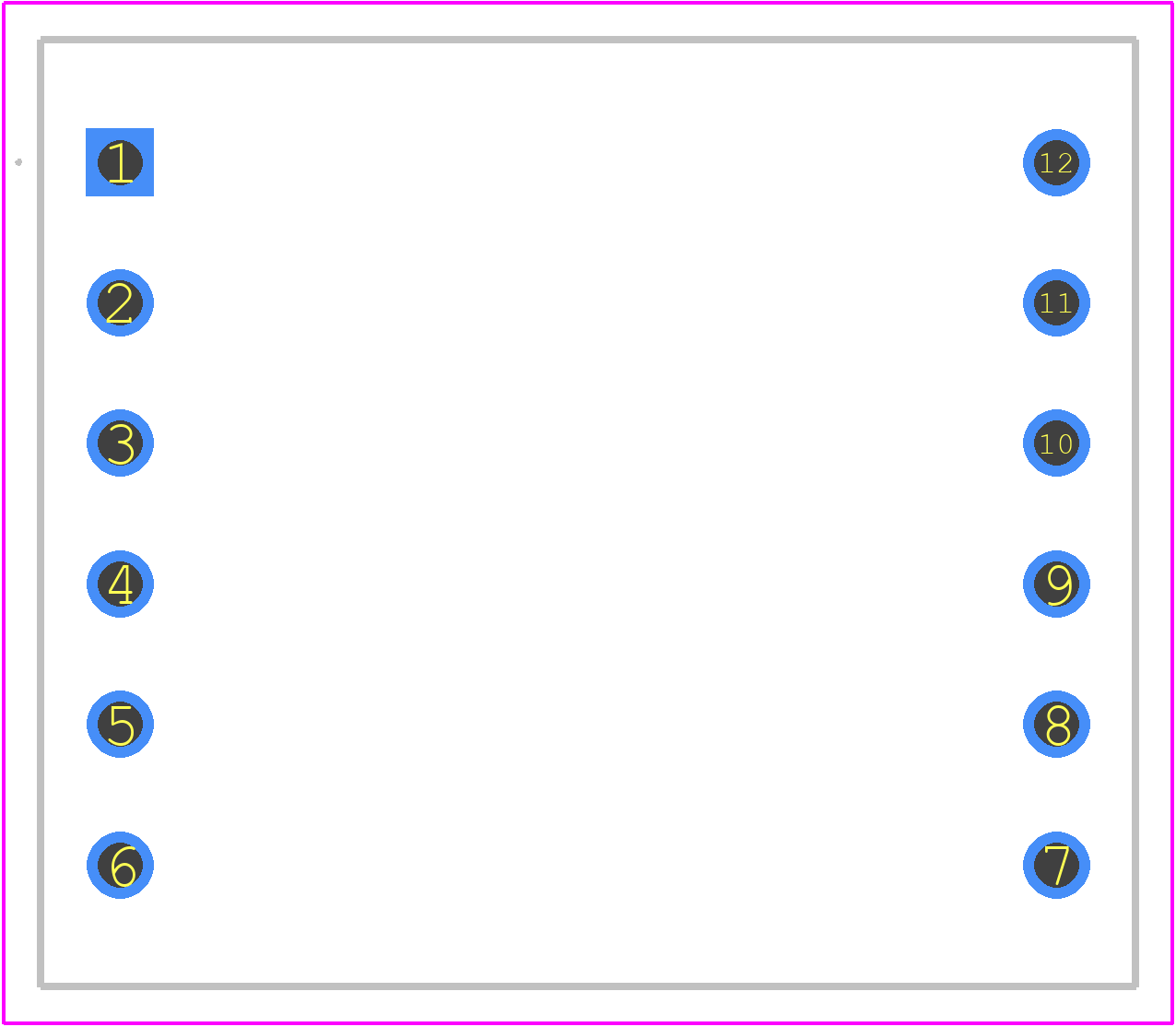

Use the download button to access the MTPL-2516-S12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTPL-,
or try a keyword search, such as SMPS Transformers
