MTPL-2516-S24V - Vishay

Description: Power Transformers 24 output V

Download MTPL-2516-S24V Model

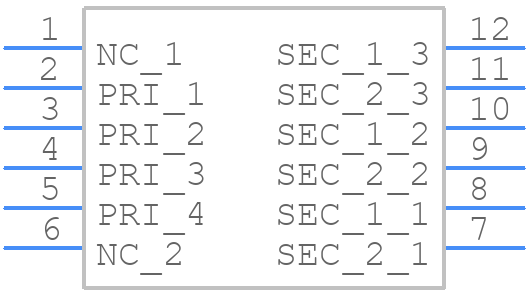

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

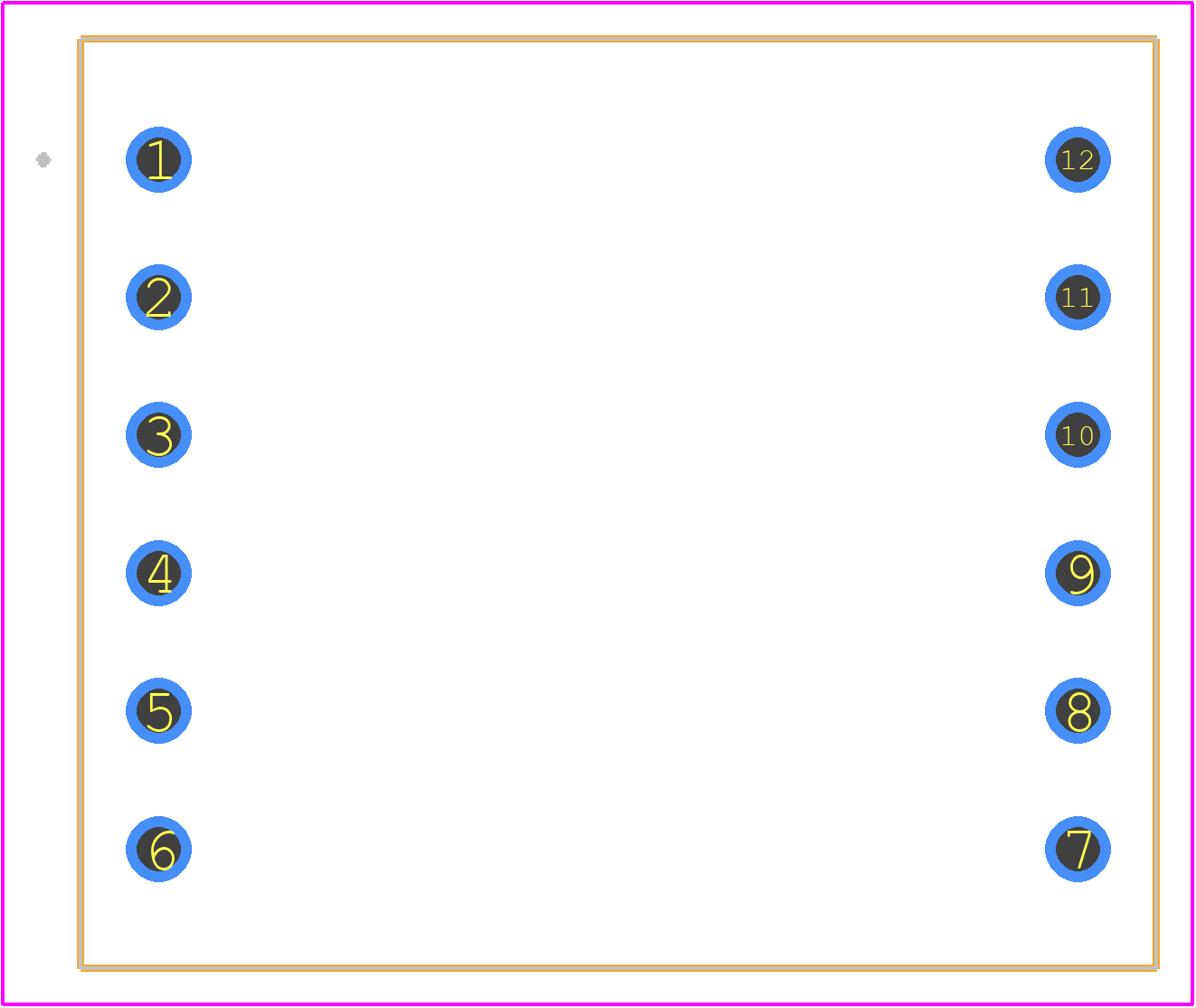

PCB Footprints
MTPL-2516-S24V - Vishay PCB footprint - Other - Other - MTPL-2516-S24V-2
click to zoom
3D Models
MTPL-2516-S24V - Vishay  - 3D model - Other - MTPL-2516-S24V-2
click to zoom

MTPL-2516-S24V Details

  • Manufacturer Part Number:

    MTPL-2516-S24V

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.78

  • Approvals:

    MIL-PRF-27

  • Height:

    16.51 mm

  • Input Voltage-Max:

    380 V

  • Input Voltage-Min:

    90 V

  • Length:

    29.718 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Frequency-Max:

    500 kHz

  • Operating Frequency-Min:

    100 kHz

  • Operating Temperature-Max:

    130 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage 1:

    24 V

  • Power Rating:

    3 W

  • Primary Inductance:

    450 µH

  • Surface Mount:

    NO

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    25.654 mm
