MTQZ75-110S12 - Minmax

Description: The MTQZ75 series is a 75-watt DC-DC converter designed for high-performance applications in railway settings. The series is designed in a quarter brick size according to international standards, featuring fully encapsulated potting assembly to resist external environmental interference. Two widely accepted input voltage ranges are offered: 72 (43-101)VDC and 110 (66-160)VDC, with a total of 8 selectable models providing precise output voltages of 5/12/15/24. All models comply with railway certification sta

Download MTQZ75-110S12 Model

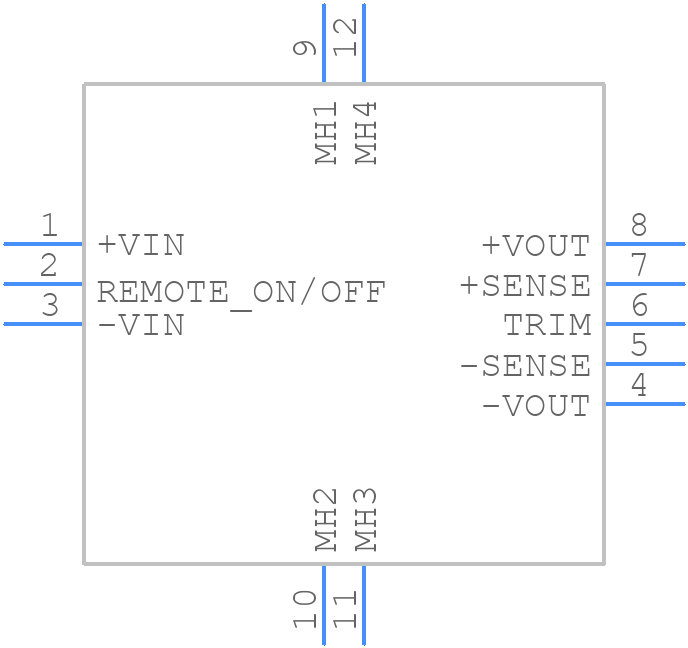

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

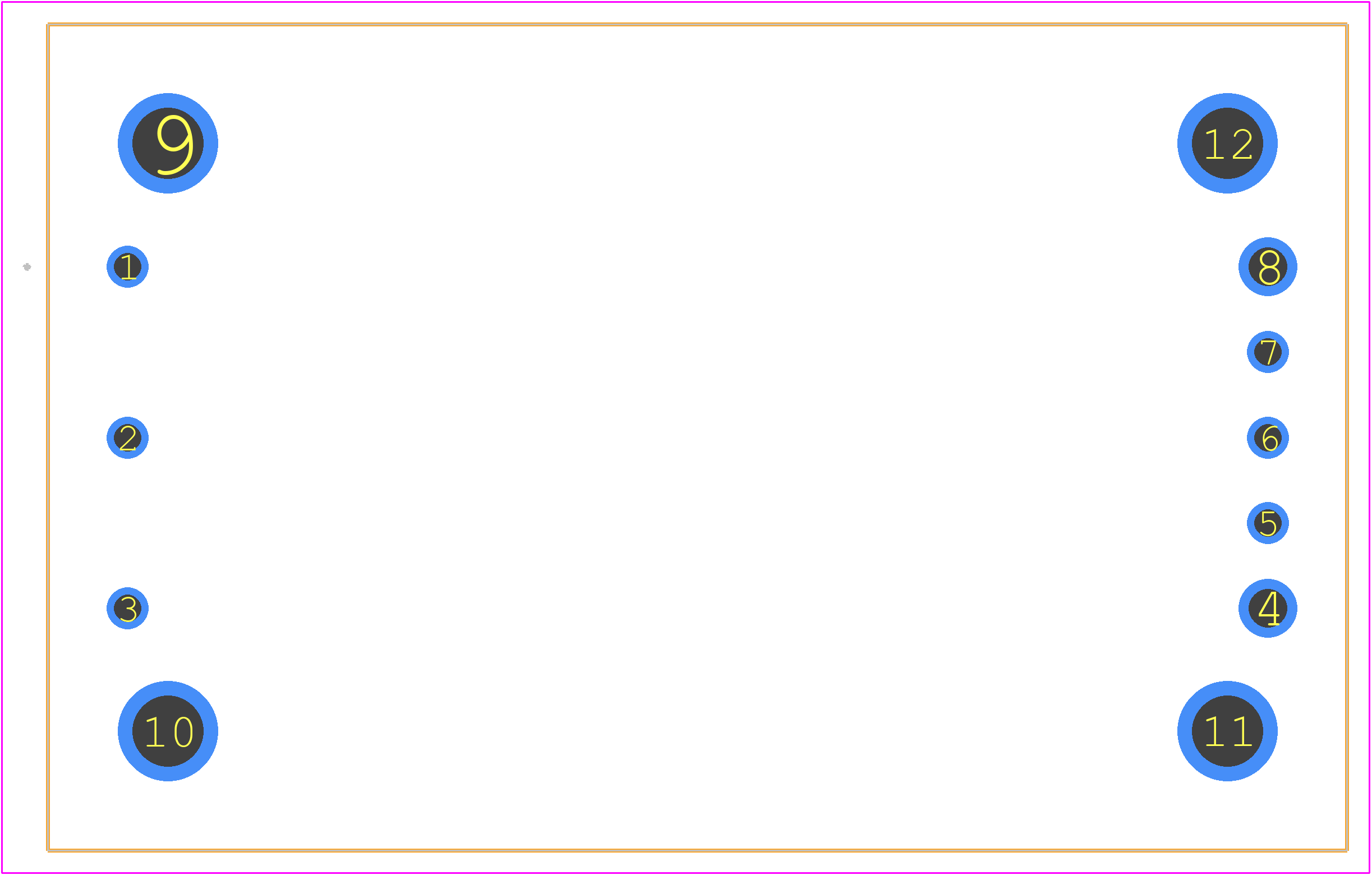

PCB Footprints
MTQZ75-110S12 - Minmax PCB footprint - Other - Other - 57.9x36.8x12.7
click to zoom
3D Models
MTQZ75-110S12 - Minmax  - 3D model - Other - 57.9x36.8x12.7
click to zoom

MTQZ75-110S12 Details

  • Manufacturer Part Number:

    MTQZ75-110S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

MTQZ75-110S12 Frequently Asked Questions (FAQs)

  • Minmax provides a recommended PCB layout in their application notes, which includes guidelines for component placement, thermal management, and noise reduction. It's essential to follow these guidelines to ensure optimal performance, efficiency, and reliability.
  • To ensure reliability in high-temperature environments, it's crucial to follow the recommended derating curves for output power and input voltage. Additionally, ensure proper thermal management, such as using a heat sink or thermal interface material, and consider using a conformal coating to protect the converter from moisture and contaminants.
  • The maximum allowable capacitance for the output filter is not explicitly stated in the datasheet. However, as a general rule, it's recommended to keep the output capacitance below 10uF to avoid stability issues. It's best to consult with Minmax's technical support or application notes for specific guidance on output filter design.
  • Yes, the MTQZ75-110S12 can be used in a redundant or parallel configuration, but it requires careful design and consideration of the system's overall architecture. Minmax provides guidelines for parallel operation in their application notes, including recommendations for synchronization, current sharing, and fault detection.
  • The typical start-up time for the MTQZ75-110S12 is around 10-20ms, depending on the input voltage and output load. However, this can vary depending on the specific application and system requirements. It's essential to consult the datasheet and application notes for more detailed information on start-up characteristics.
