MTSW-105-09-L-D-430 - SAMTEC

Description: Connector Header Through-hole 10 positions 0.100" (2.54mm)

Download MTSW-105-09-L-D-430 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MTSW-105-09-L-D-430 - SAMTEC - PCB symbol
click to zoom

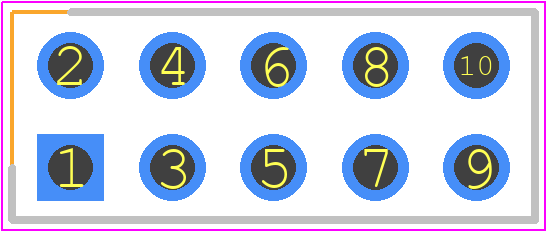

PCB Footprints
MTSW-105-09-L-D-430 - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - MTSW-105-09-L-D-430
click to zoom
3D Models
MTSW-105-09-L-D-430 - SAMTEC - 3D model - Header, Vertical - MTSW-105-09-L-D-430
click to zoom

MTSW-105-09-L-D-430 Details

  • Manufacturer Part Number:

    MTSW-105-09-L-D-430

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.2 inch

  • Body Depth:

    0.1 inch

  • Body Length:

    0.5 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

MTSW-105-09-L-D-430 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the MTSW-105-09-L-D-430 is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
  • The maximum operating temperature for the MTSW-105-09-L-D-430 is 125°C (257°F) according to Samtec's datasheet and application notes.
  • While the MTSW-105-09-L-D-430 is designed for standard PCB thicknesses, Samtec recommends consulting their application engineers for custom PCB thicknesses. They may require custom tooling or modifications to ensure reliable connections.
  • The recommended mating cycle for the MTSW-105-09-L-D-430 is 500-1000 cycles according to Samtec's application notes, depending on the specific application and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTSW-105-09-L-D-430 Overview

Use the download button to access the MTSW-105-09-L-D-430 schematic symbol, PCB footprint, and 3D model.
