The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure secure mating and prevent damage to the connector.
Yes, the MTSW-113-22-G-D-365 is designed to withstand high-vibration environments. Samtec's MT series connectors are tested to meet the requirements of IEC 61373 Cat 2, which includes vibration testing up to 15 g.
The MTSW-113-22-G-D-365 has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, the MTSW-113-22-G-D-365 is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
The MTSW-113-22-G-D-365 has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MTSW-113-22-G-D-365 Overview

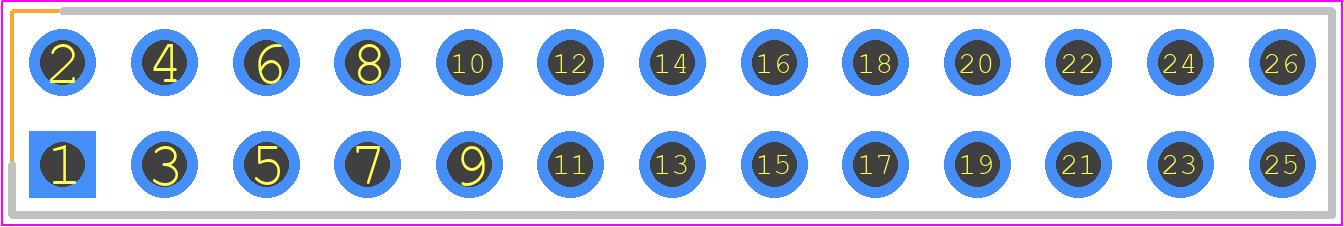

Use the download button to access the MTSW-113-22-G-D-365 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTSW-,
or try a keyword search, such as Headers and Edge Type Connectors
