Technical Content
Part Image

MTSW-117-22-G-T-360 - SAMTEC

Description: Headers & Wire Housings .100" Variable Post Height Terminal Strip

Download MTSW-117-22-G-T-360 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MTSW-117-22-G-T-360 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

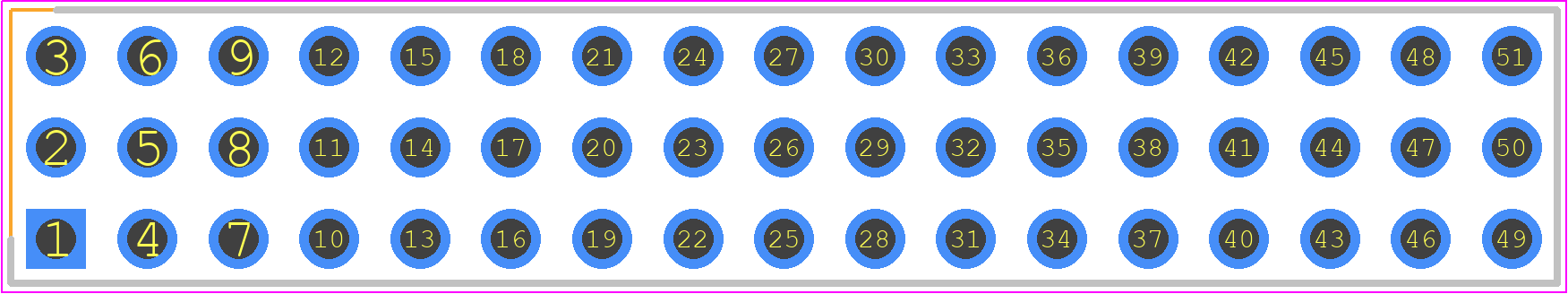

MTSW-117-22-G-T-360 - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - MTSW-117-22-G-T-360
click to zoom
3D Models
MTSW-117-22-G-T-360 - SAMTEC - 3D model - Header, Vertical - MTSW-117-22-G-T-360
click to zoom

MTSW-117-22-G-T-360 Details

  • Manufacturer Part Number:

    MTSW-117-22-G-T-360

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.3 inch

  • Body Depth:

    0.1 inch

  • Body Length:

    1.7 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (10)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    3

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    51

MTSW-117-22-G-T-360 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connection without damaging the terminals.
  • Yes, the MTSW-117-22-G-T-360 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
  • The MTSW-117-22-G-T-360 has a gold plating on the contacts, which provides some level of corrosion resistance. However, it is not fully sealed and may not be suitable for direct exposure to harsh outdoor environments. Additional protection or sealing may be required for outdoor use.
  • The MTSW-117-22-G-T-360 has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
  • No, the MTSW-117-22-G-T-360 is designed for use with wire gauges 22 AWG to 30 AWG. Using a larger wire gauge may not fit properly in the terminal or may damage the connector.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTSW-117-22-G-T-360 Overview

Use the download button to access the MTSW-117-22-G-T-360 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTSW-, or try a keyword search, such as Headers and Edge Type Connectors
