MTSW-124-12-T-S-236-RE - SAMTEC

Description: Conn Unshrouded Header HDR 24 POS 2.54mm Solder RA Side Entry Thru-Hole Bulk

Download MTSW-124-12-T-S-236-RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MTSW-124-12-T-S-236-RE - SAMTEC - PCB symbol
click to zoom
PCB Footprints

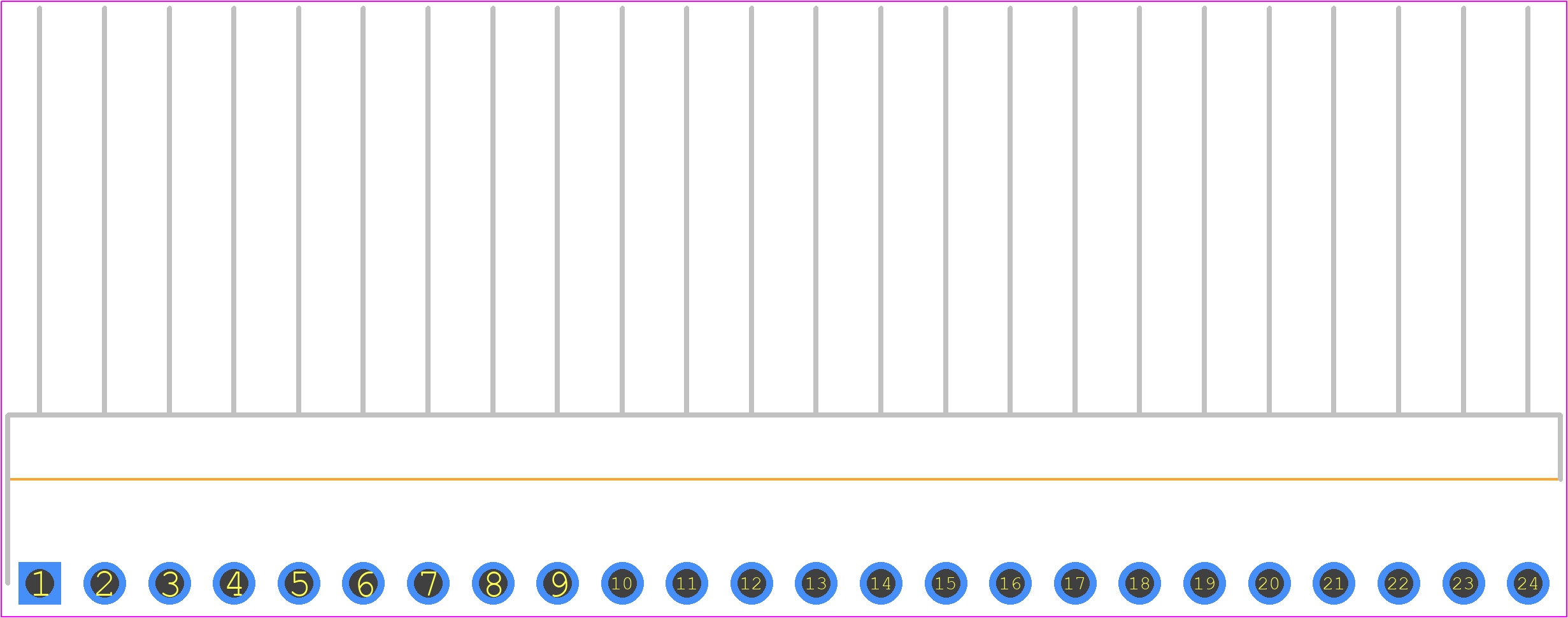

MTSW-124-12-T-S-236-RE - SAMTEC PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - MTSW-124-12-T-S-236-RE
click to zoom
3D Models
MTSW-124-12-T-S-236-RE - SAMTEC - 3D model - Header, Unshrouded - Right Angle PTH Pin - MTSW-124-12-T-S-236-RE
click to zoom

MTSW-124-12-T-S-236-RE Details

  • Manufacturer Part Number:

    MTSW-124-12-T-S-236-RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.119 inch

  • Body Depth:

    0.26 inch

  • Body Length:

    2.4 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

MTSW-124-12-T-S-236-RE Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on MTSW-124-12-T-S-236-RE is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the MTSW-124-12-T-S-236-RE is designed to meet the requirements of high-vibration applications, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • The MTSW-124-12-T-S-236-RE has an operating temperature range of -55°C to +125°C, making it suitable for high-temperature applications. However, it's essential to consider the temperature rating of the specific materials used in your design.
  • The MTSW-124-12-T-S-236-RE has a mating cycle life of 500 cycles minimum, according to Samtec's specifications.
  • Yes, the MTSW-124-12-T-S-236-RE is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances and the registration, evaluation, authorization, and restriction of chemicals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MTSW-124-12-T-S-236-RE Overview

Use the download button to access the MTSW-124-12-T-S-236-RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MTSW-, or try a keyword search, such as Headers and Edge Type Connectors
