The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, using a minimum of 2oz copper thickness, and ensuring a solid ground plane on the top and bottom layers. Additionally, it's recommended to use vias to connect the thermal pad to the ground plane.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. Ensure proper airflow and avoid exposing the device to extreme temperatures beyond the specified operating range.
The recommended soldering conditions for the MUN20AD03-SM involve using a soldering iron with a temperature of 250°C to 260°C, and a soldering time of 3 to 5 seconds. It's also recommended to use a solder with a melting point of 217°C to 221°C.
To handle ESD protection during handling and assembly, it's recommended to use an ESD wrist strap or mat, and to ensure that all equipment and tools are properly grounded. Avoid touching the device's pins or handling it in a way that could generate static electricity.
The recommended storage conditions for the MUN20AD03-SM involve storing it in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MUN20AD03-SM Overview

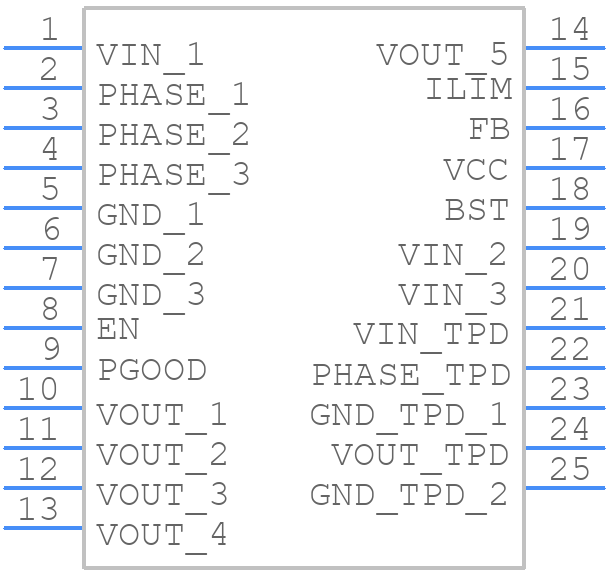

Use the download button to access the MUN20AD03-SM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MUN20,
or try a keyword search, such as Switching Regulator or Controllers
