MUSB-D511-00 - Amphenol

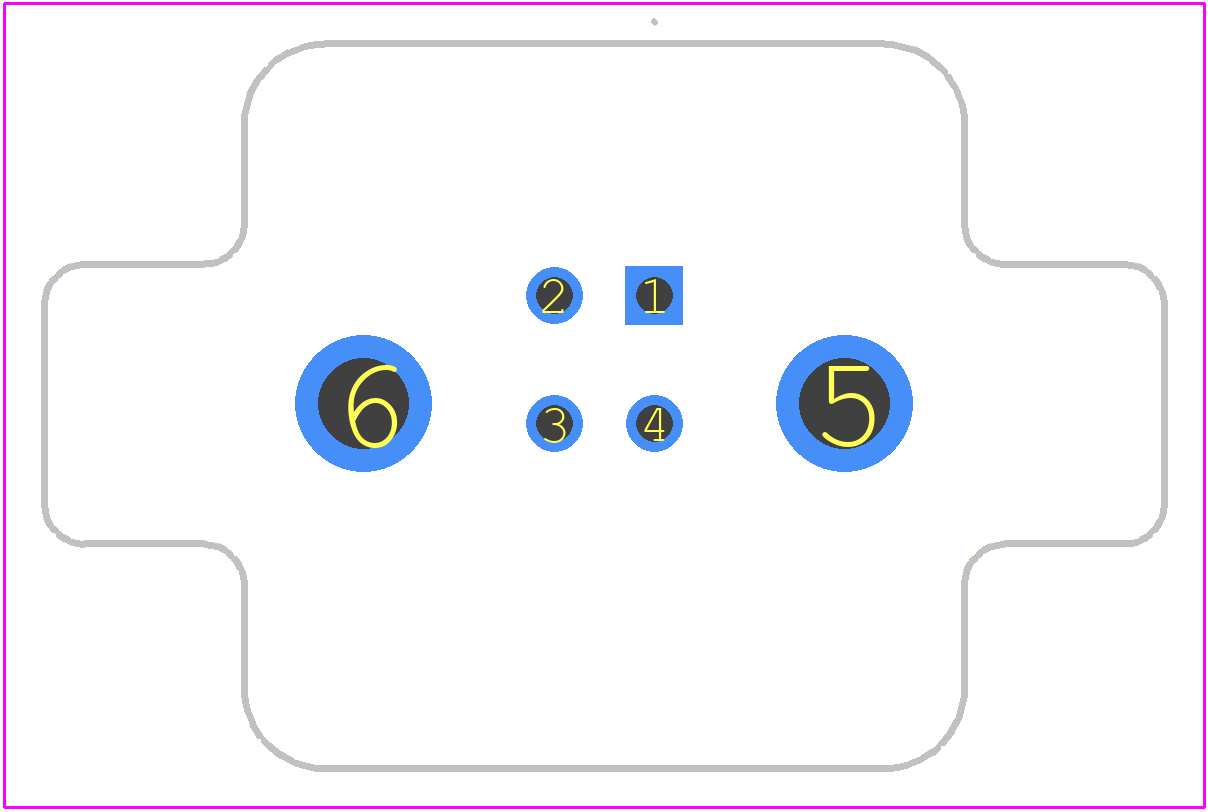

MUSB-D511-00 Details

• Manufacturer Part Number:

  MUSB-D511-00

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Amphenol Corporation

• YTEOL:

  7

• Board Mounting Option:

  MOUNTING FLANGE

• Body Breadth:

  0.713 inch

• Body Depth:

  0.709 inch

• Body Length:

  1.102 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  USB CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  USB 2.0 B

• Dielectric Withstanding Voltage:

  500VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYETHYLENE

• Mixed Contacts:

  YES

• Mounting Option 1:

  #4-40 UNC

• Mounting Option 2:

  THREADED

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  3.2 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  ZINC ALLOY

• Terminal Length:

  0.091 inch

• Terminal Pitch:

  2.5 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  4

• UL Flammability Code:

  94V-0
