MUSES72320V - Nisshinbo

Description: Operating Voltage Analog ±10 to ±18V Digital +3.0 to +5.5V ● 3-Wired Serial Control ● Selectable Chip Address Available for using four chips on same serial bus line ● Low Output Noise * It conforms to the characteristics of an external operational amplifier. ● Low Distortion * It conforms to the characteristics of an external operational amplifier. ● Volume 0 to -111.75dB /0.25dB step +21 to 0dB /3dB step, Mute ● Soft-Step Circuit ● Zero Cross Detection Circuit ● Package Outline SSOP32

Download MUSES72320V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

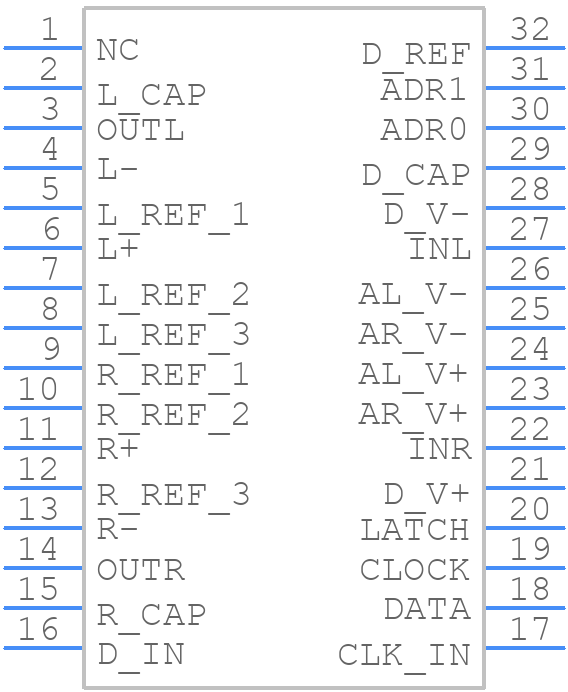

MUSES72320V - Nisshinbo - PCB symbol
click to zoom
PCB Footprints
MUSES72320V - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - SSOP32..
click to zoom
3D Models
MUSES72320V - Nisshinbo - 3D model - Small Outline Packages - SSOP32..
click to zoom

MUSES72320V Details

  • Manufacturer Part Number:

    MUSES72320V

  • Manufacturer:

    Nisshinbo Micro Devices

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MUSES72320V Overview

Use the download button to access the MUSES72320V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MUSES, or try a keyword search, such as Audio Control ICs
