MUSES8920D - Nisshinbo

Description: Audio Amplifiers J-FET Input Dual Op Amp

Download MUSES8920D Model

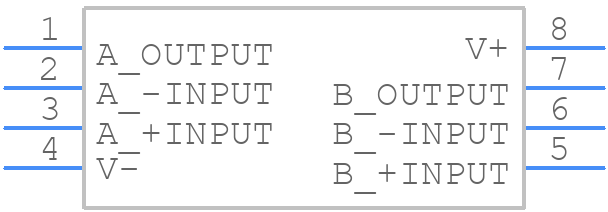

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MUSES8920D - Nisshinbo PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8(MUSES)
click to zoom
3D Models
MUSES8920D - Nisshinbo  - 3D model - Dual-In-Line Packages - DIP8(MUSES)
click to zoom

MUSES8920D Details

  • Manufacturer Part Number:

    MUSES8920D

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00025 µA

  • Bias Current-Max (IIB) @25C:

    0.00025 µA

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    8.8 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.25 mm

  • Slew Rate-Nom:

    25 V/us

  • Supply Current-Max:

    12 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    JFET

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    11000

  • Wideband:

    NO

  • Width:

    7.62 mm

MUSES8920D Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10uF capacitor between VCC and GND, and a 100nF capacitor between AVCC and AGND.
  • Apply power to VCC and AVCC simultaneously, with a rise time of 1ms or slower. Ensure that the power supply is stable and within the recommended voltage range. After power-up, wait for at least 10ms before sending any commands to the device.
  • The maximum clock frequency is 50MHz, but it's recommended to use a clock frequency of 44.1kHz or 48kHz for audio applications to minimize jitter and ensure optimal performance.
  • The MUSES8920D outputs 24-bit data in I²S format. Ensure that the receiving device can handle this format and that the clock and data lines are properly synchronized. Use a buffer or FIFO to handle the data stream and prevent data loss.
  • The recommended operating temperature range is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance and lifespan. Ensure proper thermal design and heat dissipation to maintain optimal performance.
