MUSS100-12-C_E - PANCON CONNECTORS

Description: Conn Wire to Board HDR 12 POS 2.54mm Solder ST Top Entry Thru-Hole MAS-CON®

Download MUSS100-12-C_E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MUSS100-12-C_E - PANCON CONNECTORS - PCB symbol
click to zoom

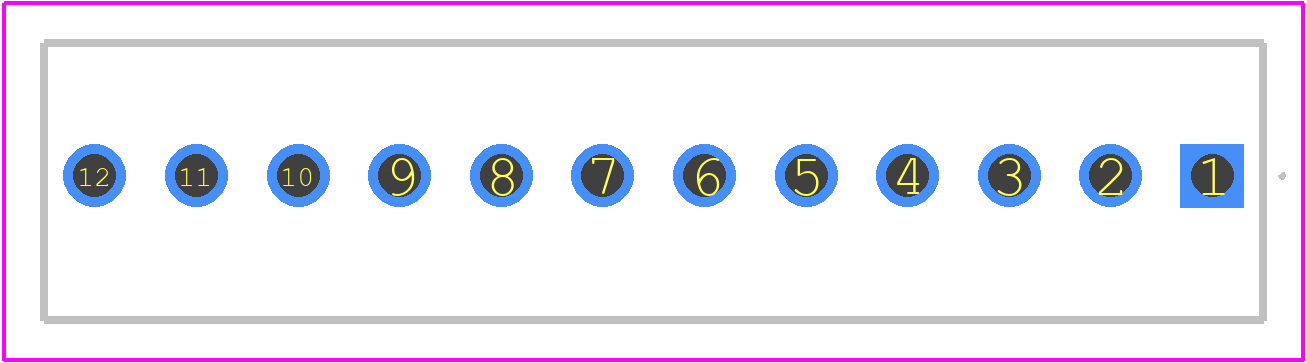

PCB Footprints
MUSS100-12-C_E - PANCON CONNECTORS PCB footprint - Other - Other - MUSS100-12-C_E-2
click to zoom
3D Models
MUSS100-12-C_E - PANCON CONNECTORS - 3D model - Other - MUSS100-12-C_E-2
click to zoom

MUSS100-12-C_E Details

  • Manufacturer Part Number:

    MUSS100-12-C_E

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Pancon Corporation

  • YTEOL:

    9.1

  • Body Breadth:

    0.272 inch

  • Body Depth:

    0.37 inch

  • Body Length:

    1.2 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    WHITE

  • Insulator Material:

    GLASS FILLED POLYAMIDE66

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.142 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0
