Part Image

MV54164 - Everlight

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Green (x 10) 2.2V 30mA Rectangle with Flat Top 5.08mm x 1.78mm Through Hole –40°C to +85°C

Download MV54164 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

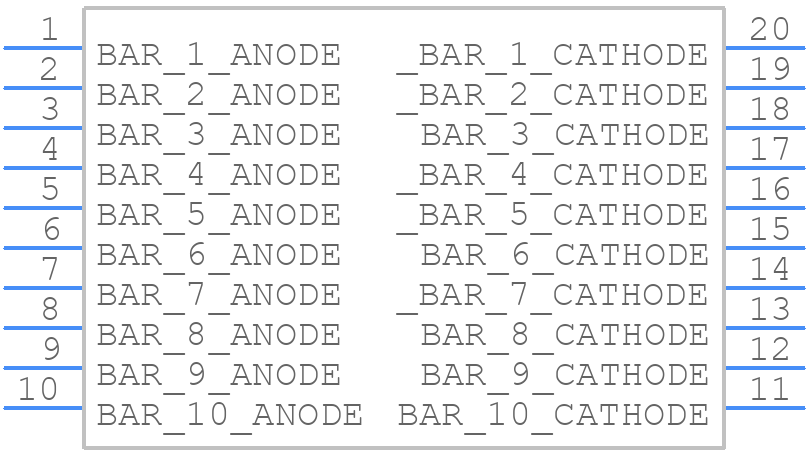

MV54164 - Everlight - PCB symbol
click to zoom
PCB Footprints

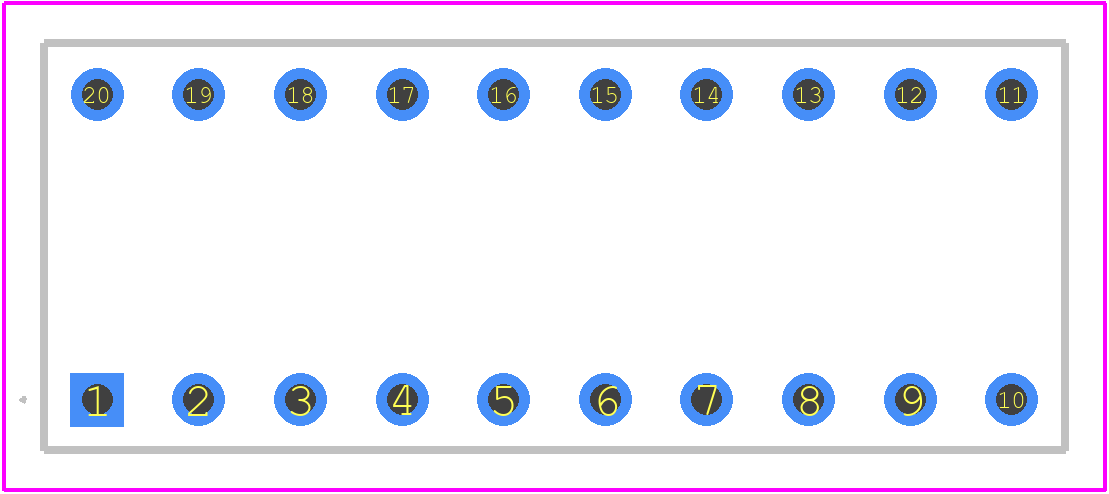

MV54164 - Everlight PCB footprint - Other - Other - DIP-20
click to zoom
3D Models
MV54164 - Everlight - 3D model - Other - DIP-20
click to zoom

MV54164 Details

  • Manufacturer Part Number:

    MV54164

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    SEPARATE, 10 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    3 V

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    1.8 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of LEDs in Array:

    10

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    8 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    562 nm

  • Shape:

    RECTANGULAR

  • Size:

    5.08 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    7.62 mm

MV54164 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MV54164 is -40°C to 85°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's power consumption and ensure good thermal management, such as using a heat sink or thermal interface material.
  • The maximum allowable voltage for the MV54164 is 5.5V, and it is recommended to operate the device within the recommended voltage range of 4.5V to 5.5V for optimal performance and reliability.
  • To handle ESD protection for the MV54164, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring that the device is stored in an ESD-protected environment.
  • The recommended storage condition for the MV54164 is in a dry, cool place, away from direct sunlight and moisture, and in its original packaging or an ESD-protected environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MV54164 Overview

Use the download button to access the MV54164 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MV541, or try a keyword search, such as Visible LEDs
