The recommended operating temperature range for the MVD-2525 is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate storage temperatures between -40°C and 125°C.
To ensure proper ESD protection, handle the MVD-2525 with an anti-static wrist strap or mat, and avoid touching the device's pins or components. Also, store the device in its original packaging or an anti-static bag when not in use.
The maximum power dissipation for the MVD-2525 is not explicitly stated in the datasheet. However, based on the device's thermal resistance and maximum junction temperature, it's recommended to keep the power dissipation below 1.5W to ensure reliable operation.
While the MVD-2525 is designed to operate in a variety of environments, it's not recommended to use it in extremely humid conditions (above 80% RH). If you must operate the device in a humid environment, ensure proper sealing and conformal coating to prevent moisture ingress.
The recommended soldering temperature for the MVD-2525 is between 230°C and 250°C, with a maximum soldering time of 3 seconds per pin. It's essential to follow the recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MVD-2525 Overview

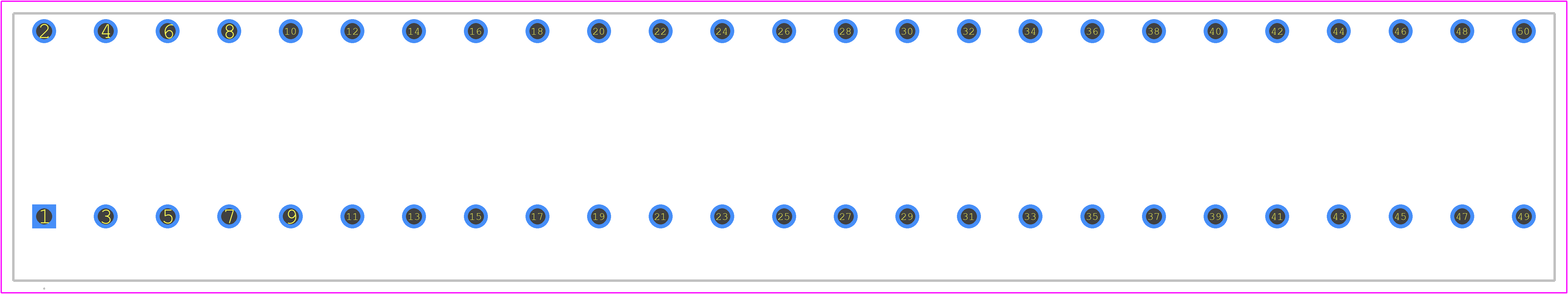

Use the download button to access the MVD-2525 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MVD-2,
or try a keyword search, such as Terminals and Terminal Blocks
