- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MVD-258
- Part Number MVD-258
- Manufacturer Altech
- Pin Count 16
- Part Category Connector
- Package Category Other

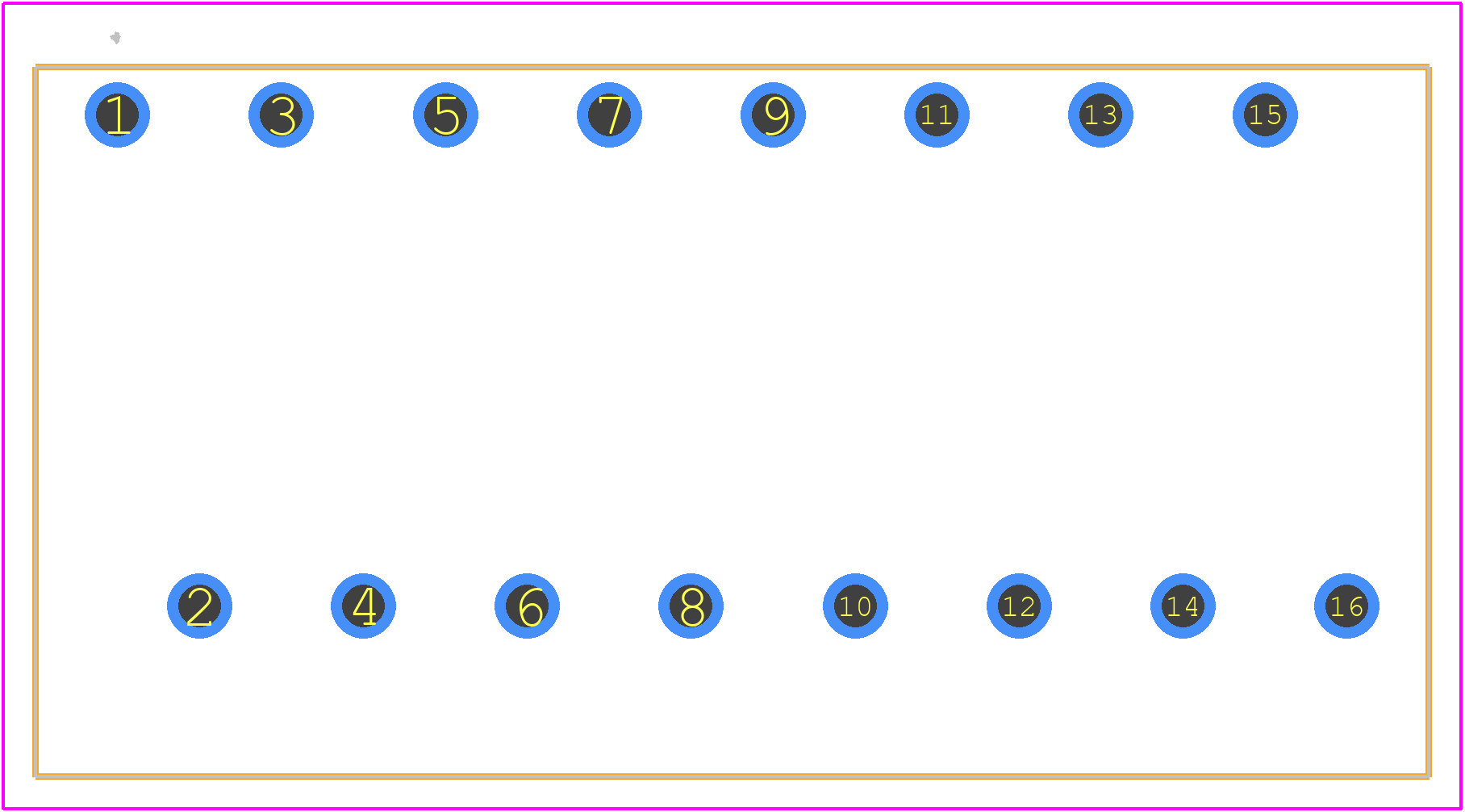

- Footprint Name Other - MVD-258-1
- Released Date Oct 25, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MVD-258 Details
-
Manufacturer Part Number:
MVD-258
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Altech Corporation
-
YTEOL:
6.75
-
Terminal and Terminal Block Type:
BARRIER STRIP TERMINAL BLOCK
Trust Checks
Expert Contribution
System Verified
Community Approved
MVD-258 Overview
Use the download button to access the MVD-258 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MVD-2,
or try a keyword search, such as Terminals and Terminal Blocks
