MVSR-20-17-28 - LITTELFUSE

Description: Glass Body Reed Switch SPST-NO 17 ~ 28AT Operate Range 10W 350mA (AC), 500mA (DC) 265 V Through Hole

Download MVSR-20-17-28 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MVSR-20-17-28 model

Email notifications will be applied after download.

Send part feedback

Symbol

MVSR-20-17-28 - LITTELFUSE - PCB symbol

PCB Footprints

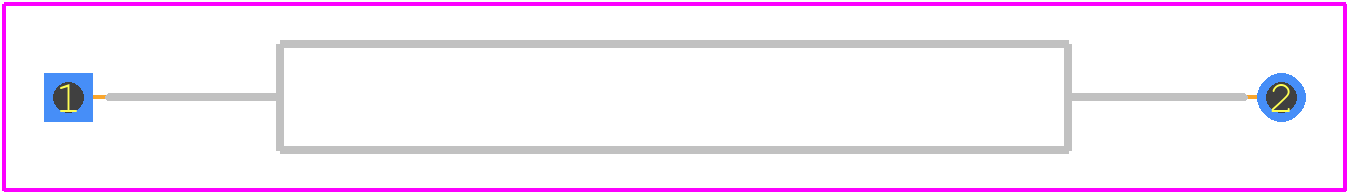

MVSR-20-17-28 - LITTELFUSE PCB footprint - Other - Other - MVSR-20-17-28

3D Models

MVSR-20-17-28 - LITTELFUSE - 3D model - Other - MVSR-20-17-28

Datasheet Download Datasheet
Stock & Prices Price & Stock for MVSR-20-17-28
Part Number MVSR-20-17-28
Manufacturer LITTELFUSE
Pin Count 2
Part Category Switch
Package Category Other
Footprint Name Other - MVSR-20-17-28
Released Date Jul 9, 2024
Last Modified Date Jul 9, 2024 6:15 AM UTC
Pinout / Pin List Click Here (Member Only)

MVSR-20-17-28 Details

Manufacturer Part Number:
MVSR-20-17-28
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Littelfuse Inc
YTEOL:
9.3
Switch Type:
DRY REED SWITCH
