MVSR-20-27-33 - LITTELFUSE

Description: Magnetic/Reed Switches 27-33AT NO 100V 10W 19.7MM REED

Download MVSR-20-27-33 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MVSR-20-27-33 model

Email notifications will be applied after download.

Send part feedback

Symbol

MVSR-20-27-33 - LITTELFUSE - PCB symbol

PCB Footprints

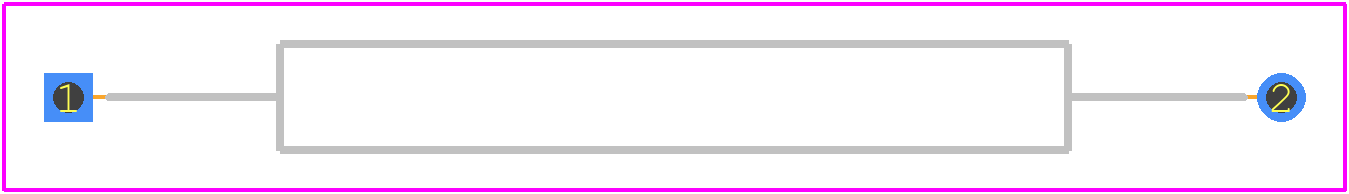

MVSR-20-27-33 - LITTELFUSE PCB footprint - Other - Other - MVSR-20-27-33

3D Models

MVSR-20-27-33 - LITTELFUSE - 3D model - Other - MVSR-20-27-33

Datasheet Download Datasheet
Stock & Prices Price & Stock for MVSR-20-27-33
Part Number MVSR-20-27-33
Manufacturer LITTELFUSE
Pin Count 2
Part Category Switch
Package Category Other
Footprint Name Other - MVSR-20-27-33
Released Date Jul 9, 2024
Last Modified Date Jul 9, 2024 6:23 AM UTC
Pinout / Pin List Click Here (Member Only)

MVSR-20-27-33 Details

Manufacturer Part Number:
MVSR-20-27-33
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Littelfuse Inc
YTEOL:
8.75
Switch Type:
DRY REED SWITCH
