MX25L25645GZ2I-08G - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 256M-bit 256M/128M/64M x 1/2-bit/4-bit 8ns 8-Pin WSON EP

Download MX25L25645GZ2I-08G Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MX25L25645GZ2I-08G model

Email notifications will be applied after download.

Send part feedback

Symbol

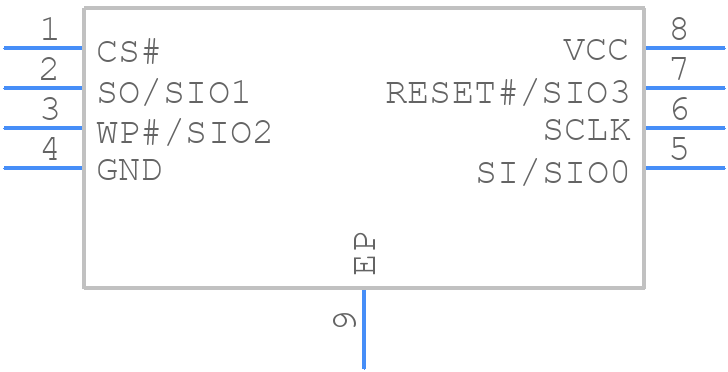

MX25L25645GZ2I-08G - Macronix - PCB symbol

PCB Footprints

MX25L25645GZ2I-08G - Macronix PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-land WSON (8x6mm)

3D Models

MX25L25645GZ2I-08G - Macronix - 3D model - Small Outline No-lead - 8-land WSON (8x6mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for MX25L25645GZ2I-08G
Part Number MX25L25645GZ2I-08G
Manufacturer Macronix
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 8-land WSON (8x6mm)
Released Date Oct 19, 2020
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

MX25L25645GZ2I-08G Details

Manufacturer Part Number:
MX25L25645GZ2I-08G
Manufacturer:
Macronix International Co Ltd

Trust Checks

System Verified

MX25L25645GZ2I-08G Overview

Use the download button to access the MX25L25645GZ2I-08G schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MX25L, or try a keyword search, such as Flash Memories
