MX25L25645GZNI-08G - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 256M-bit 256M/128M/64M x 1/2-bit/4-bit 8ns 8-Pin WSON EP

Download MX25L25645GZNI-08G Model

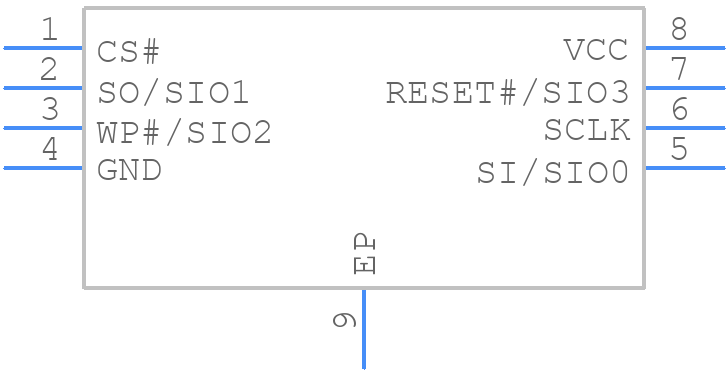

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25L25645GZNI-08G - Macronix PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-land WSON (6x5mm)
click to zoom
3D Models
MX25L25645GZNI-08G - Macronix  - 3D model - Small Outline No-lead - 8-land WSON (6x5mm)
click to zoom

MX25L25645GZNI-08G Details

  • Manufacturer Part Number:

    MX25L25645GZNI-08G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    6.2

  • Clock Frequency-Max (fCLK):

    120 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-XDSO-N8

  • Length:

    6 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25L25645GZNI-08G Frequently Asked Questions (FAQs)

  • The MX25L25645GZNI-08G has a minimum of 100,000 erase cycles, but the actual number may vary depending on usage and environmental conditions.
  • The HOLD# pin is used to pause the current operation, and the OE# pin is used to tri-state the output. Both pins should be connected to VCC or VSS as required, and not left floating.
  • The recommended power-up sequence is to apply VCC first, followed by VSS, and then the other signals. This ensures proper device initialization and prevents latch-up.
  • The WP# pin is used to enable or disable write protection. Connect WP# to VCC to enable write protection, or to VSS to disable it. Leaving WP# floating may cause unpredictable behavior.
  • The MX25L25645GZNI-08G has a maximum operating frequency of 104 MHz, but the actual frequency may be limited by the system design and environmental conditions.
