MX25L3236FM2I-08G - Macronix

Description: 3V, 32M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY

Download MX25L3236FM2I-08G Model
Schematic

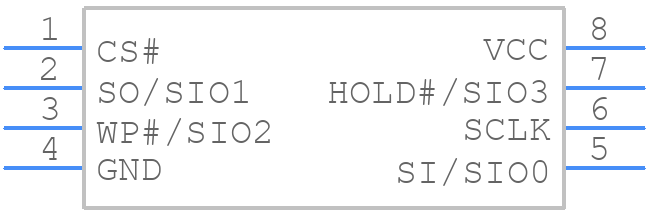

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25L3236FM2I-08G - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOP (200MIL)
click to zoom
3D Models
MX25L3236FM2I-08G - Macronix  - 3D model - Small Outline Packages - 8-SOP (200MIL)
click to zoom

MX25L3236FM2I-08G Details

  • Manufacturer Part Number:

    MX25L3236FM2I-08G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    5.5

  • Additional Feature:

    ALSO CONFIGURABLE AS 32MX1

  • Alternate Memory Width:

    4

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5.28 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.65 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    5.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25L3236FM2I-08G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX25L3236FM2I-08G is 2.7V to 3.6V.
  • The hold pin (HOLD#) should be driven low to pause the current operation and enter a low-power state. It should be driven high to resume the operation.
  • The WP# pin is a write-protect pin that allows the user to protect the entire memory array or a portion of it from being written. To use it, tie the WP# pin to VCC to enable write protection or to GND to disable it.
  • The device density is 32Mb (4096K x 8), and the organization is 8-bit x 4096K.
  • The maximum clock frequency for the MX25L3236FM2I-08G is 133MHz.
