MX25L3255EM2I-10G - Macronix

Description: HIGH PERFORMANCE SERIAL FLASH SPECIFICATION

Download MX25L3255EM2I-10G Model

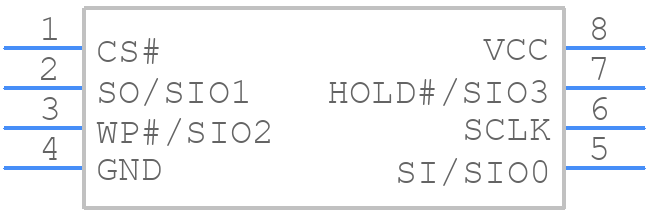

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25L3255EM2I-10G - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOP (209MIL)
click to zoom
3D Models
MX25L3255EM2I-10G - Macronix  - 3D model - Small Outline Packages - 8-SOP (209MIL)
click to zoom

MX25L3255EM2I-10G Details

  • Manufacturer Part Number:

    MX25L3255EM2I-10G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    0.200 INCH, ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4

  • Additional Feature:

    CAN BE ORGNISED AS 32 MBIT X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    2.7 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25L3255EM2I-10G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX25L3255EM2I-10G is 2.7V to 3.6V.
  • The hold pin (HOLD#) should be driven low to pause the current operation and enter a low-power state. It should be driven high to resume the operation.
  • The write protect pin (WP#) is used to prevent accidental writes to the device. When WP# is driven low, the device is in write-protect mode, and when it is driven high, the device is in normal operation mode.
  • The MX25L3255EM2I-10G has a density of 32Mb (4MB) and is organized as 2048 sectors of 64KB each.
  • The maximum number of erase cycles for the MX25L3255EM2I-10G is 100,000 cycles per sector.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
